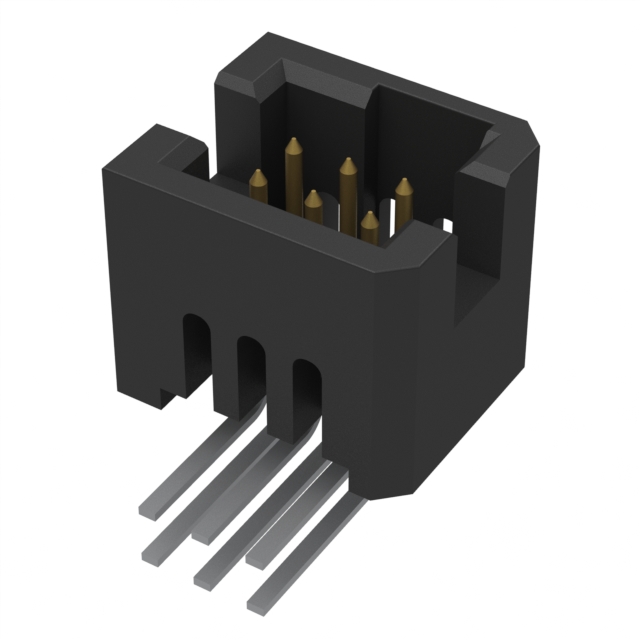

TFC-103-01-F-D-RA
Or copy the link below:
- Mfr.Part #
- TFC-103-01-F-D-RA
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .050 X .050 TERMINAL STRIP
- Stock
- 24,846
- In Stock ：
- 24,846
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Mating Contact Pitch :
- 0.05 inch
- RoHS Status :
- ROHS3 Compliant
- Body Breadth :
- 0.225 inch
- Mounting Option 1 :
- LOCKING
- Operating Temperature (Max) :
- 125°C
- PCB Contact Pattern :
- RECTANGULAR
- Rated Current (Signal) :
- 2.9A
- Contact Pattern :
- RECTANGULAR
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 2
- Contact Finish - Mating :
- AU ON NI
- Length - Termination :
- 0.075 inch
- Termination Type :
- Solder
- Number of Rows :
- 2
- Insulator Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Operating Temperature (Min) :
- -55°C
- Reference Standard :
- UL, CSA
- Mating Contact Row Spacing :
- 0.05 inch
- PCB Contact Row Spacing :
- 2.54 mm
- Factory Lead Time :
- 3 Weeks
- Dielectric Withstanding Voltage :
- 825VAC V
- Terminal Pitch :
- 2.54mm
- Plating Thickness :
- FLASH inch
- Connector Type :
- BOARD CONNECTOR
- Contact Style :
- RND PIN-SKT
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Mounting Type :
- BOARD
- Body Length or Diameter :
- 0.425 inch
- Polarization Key :
- POLARIZED HOUSING
- Contact Resistance :
- 15mOhm
- Contact Gender :
- Male
- Contact Finish Termination :
- TIN OVER NICKEL
- Mounting Style :
- RIGHT ANGLE
- Contact Material :
- Phosphor Bronze
- Number of Conductors :
- ONE
- Total Number of Contacts :
- 6
- Datasheets
- TFC-103-01-F-D-RA
2-Row BOARD CONNECTOR PHOSPHOR BRONZE BOARD AU ON NI LIQUID CRYSTAL POLYMER (LCP)
TFC-103-01-F-D-RA Overview
The product is packaged in BOARD CONNECTOR.This device is mounted in the BOARD position.
TFC-103-01-F-D-RA Features
TFC-103-01-F-D-RA Applications
There are a lot of Samtec Inc.
TFC-103-01-F-D-RA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
