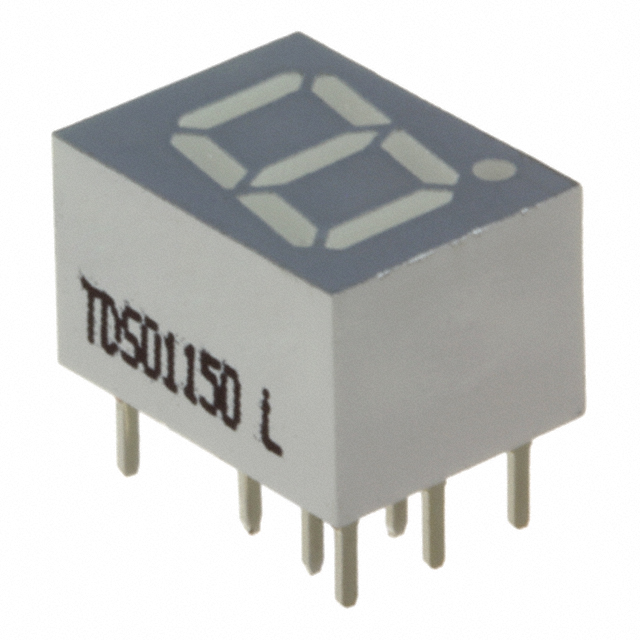

TDSO1150-K
Or copy the link below:
- Mfr.Part #
- TDSO1150-K
- Manufacturer
- Vishay
- Package / Case
- DIP
- Datasheet
- Download
- Description
- DISPLAY 7-SEG 0.28" SGL ORG-RED
- Stock
- 215
- In Stock ：
- 215
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Package / Case :
- DIP
- Common Pin :
- Common Anode
- Viewing Area (height) :
- 7mm
- Power Dissipation-Max :
- 400mW
- Color :
- Orange-Red
- Wavelength :
- 631 nm
- Forward Voltage :
- 2V
- Mount :
- Through Hole
- Series :
- TDS.11
- Voltage - Forward (Vf) (Typ) :
- 2V
- Number of Characters :
- 1
- Luminous Intensity :
- 3.6 mcd
- Dominant Wavelength :
- 625 nm
- Character Height :
- 7mm
- Lead Free :
- Lead Free
- Forward Current :
- 17mA
- Height :
- 9.8806mm
- Power Dissipation :
- 400mW
- Radiation Hardening :
- No
- Length :
- 9.9mm
- Wavelength - Peak :
- 630nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 13 Weeks
- Digit/Alpha Size :
- 0.28 7.00mm
- Width :
- 7.3914mm
- Display Type :
- 7-Segment
- REACH SVHC :
- Unknown
- Number of Pins :
- 10
- Depth :
- 7.4mm
- Reverse Voltage :
- 15V
- Current - Test :
- 20mA
- Published :
- 2014
- Element Configuration :
- Common Anode
- Size / Dimension :
- 0.389 Hx0.291W x 0.236 D 9.90mmx7.40mmx6.00mm
- Number of Elements :
- 8
- Packaging :
- Bulk
- Millicandela Rating :
- 3.6mcd
- Datasheets
- TDSO1150-K
TDSO1150-K Documents
TDSO1150-K datasheet pdf and Display Modules - LED Character and Numeric product details from Vishay Semiconductor Opto Division stock available at
