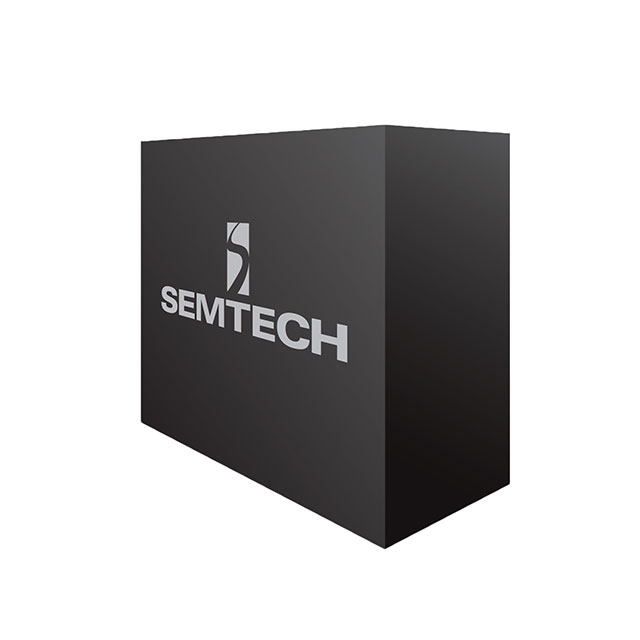

TDS4501P.C

Manufacturer :

Semtech

Product Category :

Current Rating :

24 A

Product Status :

Active

RoHS :

Details

Termination Style :

SMD/SMT

Manufacturer :

Semtech

Height :

0.55 mm

Type :

Zener

Tradename :

SurgeSwitch

Applications :

GENERAL PURPOSE

Package :

Digi-Reel?

Unidirectional Channels :

1

Voltage Rating :

45 VDC

Product Category :

Surge Suppressors

Maximum Operating Temperature :

+ 125 C

Mounting Style :

PCB Mount

Width :

1.6 mm

Subcategory :

Surge Suppressors

Brand :

Semtech

Package / Case :

6-UFDFN

Voltage - Breakdown (Min) :

46V

Minimum Operating Temperature :

- 40 C

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 125°C (TA)

Power Line Protection :

No

Capacitance @ Frequency :

90pF @ 1MHz

Voltage - Reverse Standoff (Typ) :

45V (Max)

Length :

1.6 mm

Series :

-

Capacitance :

90 pF

Voltage - Clamping (Max) @ Ipp :

56V

Power - Peak Pulse :

1344W (1.344kW)

For Use With :

Industrial, IoT Devices, Thermostats

Product :

Board Level Protection

Supplier Device Package :

6-DFN (1.6x1.6)

Packaging :

MouseReel

Flammability Rating :

UL 94 V-0

Current - Peak Pulse (10/1000μs) :

24A (8/20μs)
