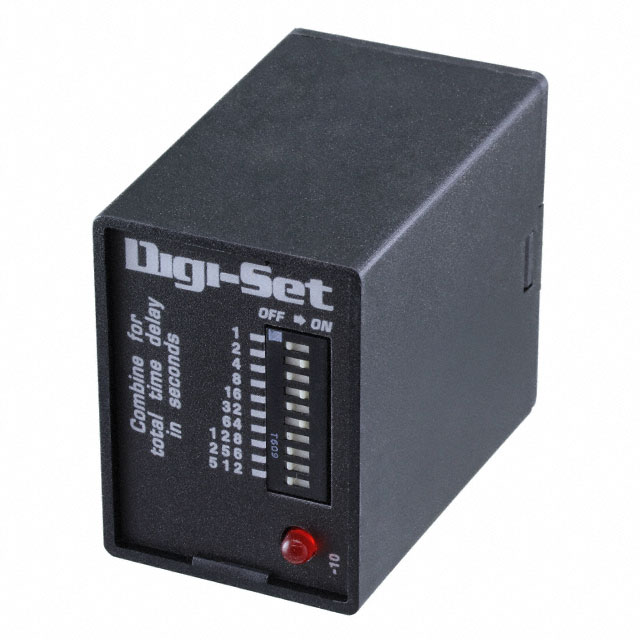

TDB120ALD
Or copy the link below:
- Mfr.Part #
- TDB120ALD
- Manufacturer
- Littelfuse
- Package / Case
- Datasheet
- Download
- Description
- RELAY TIME DELAY 1023S 10A 120V
- Stock
- 36,549
- In Stock ：
- 36,549
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Time Delay Relays
- RoHS Status :
- ROHS3 Compliant
- Relay Type :
- Mechanical Relay
- Delay Time :
- 1 Sec ~ 1023 Sec
- Published :
- 2016
- Function :
- Off-Delay
- Timing Initiate Method :
- Input Voltage, Trigger Signal
- Factory Lead Time :
- 6 Weeks
- Circuit :
- DPDT (2 Form C)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Series :
- TDB
- Contact Rating @ Voltage :
- 10A @ 120/240VAC
- Mounting Type :
- Socketable
- Timing Adjustment Method :
- DIP Switches
- Termination Style :
- Plug In, 11 Pin (Octal)
- Voltage - Supply :
- 120VAC
- Datasheets
- TDB120ALD
