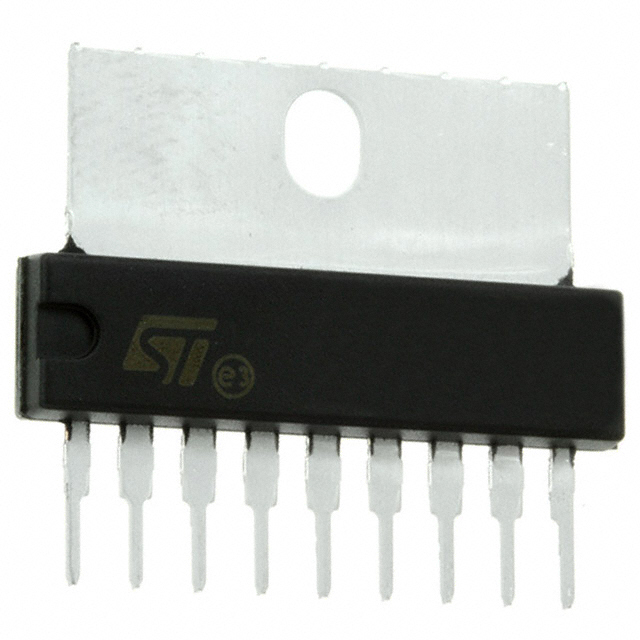

TDA8139

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Dropout Voltage :

1.2V

Output Voltage :

16V

Operating Temperature :

0°C~150°C

Number of Outputs :

2

Mounting Type :

Through Hole

Number of Terminations :

9

Adjustability :

FIXED/ADJUSTABLE

Number of Pins :

9

Terminal Position :

Single

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Reference Voltage :

2.5V

JESD-609 Code :

e3

Control Features :

Enable, Reset

Dropout Voltage1-Nom :

1.4V

Package / Case :

9-SIP

Output Configuration :

Positive

Voltage - Input (Max) :

18V

Radiation Hardening :

No

Output Type :

Adjustable (Fixed)

Pin Count :

9

Output Voltage 1 :

5.1V

Voltage Tolerance-Max :

2%

Current - Output :

750mA 750mA

Number of Regulators :

2

Quiescent Current :

2mA

Protection Features :

Over Temperature, Short Circuit

Base Part Number :

TDA8139

Min Input Voltage :

7V

Terminal Finish :

MATTE TIN

Voltage Dropout (Max) :

1.4V @ 750mA 1.4V @ 750mA

Packaging :

Bulk

Current - Quiescent (Iq) :

2mA

Peak Reflow Temperature (Cel) :

245

Accuracy :

2 %

Voltage - Output (Min/Fixed) :

2.8V 5.1V

Number of Functions :

1

RoHS Status :

ROHS3 Compliant

Mount :

Through Hole
