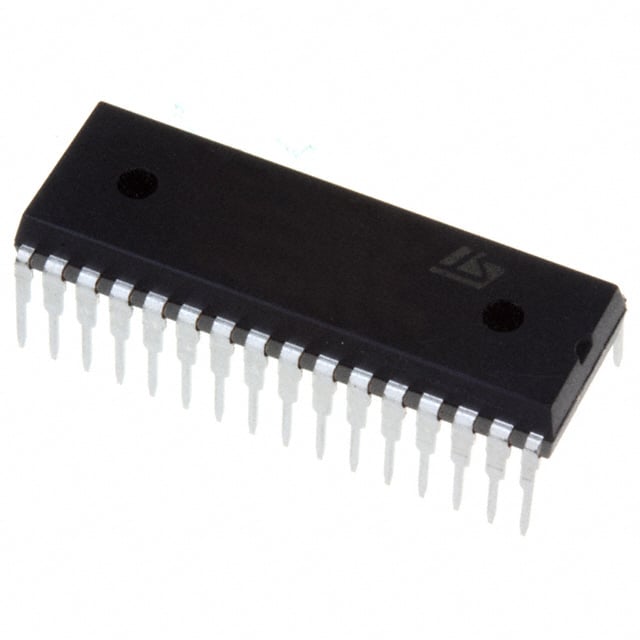

TDA7442
Or copy the link below:
- Mfr.Part #
- TDA7442
- Manufacturer
- STMicroelectronics
- Package / Case
- 32-SDIP (0.400, 10.16mm)
- Datasheet
- Download
- Description
- IC AUDIO TONE PROCESSOR 32SDIP
- Stock
- 40,747
- In Stock ：
- 40,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Audio Special Purpose
- RoHS Status :
- ROHS3 Compliant
- Interface :
- I2C
- Pbfree Code :
- yes
- Terminal Pitch :
- 1.778mm
- Terminal Finish :
- Tin (Sn)
- Consumer IC Type :
- TONE CONTROL CIRCUIT
- Base Part Number :
- TDA7442
- Operating Temperature :
- -10°C~70°C TA
- Terminal Position :
- Dual
- Height Seated (Max) :
- 5.08mm
- Supply Voltage-Min (Vsup) :
- 7V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Applications :
- Consumer Audio
- Function :
- Audio Tone Processor
- Mounting Type :
- Through Hole
- Harmonic Distortion :
- 0.01%
- Voltage - Supply :
- 7V~10.2V
- Specifications :
- 0.5dB
- Number of Terminations :
- 32
- Power Supplies :
- 9V
- Qualification Status :
- Not Qualified
- JESD-609 Code :
- e3
- Packaging :
- Tube
- ECCN Code :
- EAR99
- Channel Separation :
- 90 dB
- Number of Pins :
- 32
- Number of Channels :
- 2
- Surface Mount :
- No
- Number of Bands :
- 2
- Width :
- 10.16mm
- Package / Case :
- 32-SDIP (0.400, 10.16mm)
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Datasheets
- TDA7442
TDA7442 Documents
Audio Special Purpose STMicroelectronics TDA7442 Overview
The TDA7442 from STMicroelectronics represents a sophisticated solution for advanced audio processing needs within various electronic applications. This integrated circuit is specifically designed for tone control, making it an indispensable component for manufacturers looking to enhance audio output quality. The IC offers precise adjustment capabilities which are vital for achieving optimal sound in audio equipment. Equipped with innovative technology from STMicroelectronics, the TDA7442 excels in delivering clear, rich, and customizable audio experiences, appealing to B2B clients focused on mass production and quality enhancements in their audio device offerings.
TDA7442 Features
The TDA7442 audio tone processor includes several key features that make it a standout choice for audio management in electronic systems. These include multiple tone control adjustments, programmable volume control, and integrated signal processing capabilities. Its 32-pin SDIP package allows for manageable integration into broader electronic assemblies, providing both flexibility and reliability in application.
TDA7442 Applications
- Home Theater Systems: The TDA7442 can be used to refine audio output, ensuring crystal-clear sound quality that enhances the overall home entertainment experience.
- Car Audio Systems: In automotive applications, this IC helps in achieving adjustable tone settings to compensate for cabin acoustics, thus enhancing the listening environment within vehicles.
- Television Sets: Employed in TVs, the TDA7442 ensures that users receive high-fidelity sound by effectively managing audio tones and balancing various sound outputs.
- Portable Audio Devices: For portable audio, the TDA7442 provides essential tone control which helps in maintaining consistent sound quality, crucial for devices used in varying environments.
