TDA7396

Manufacturer :

STMicroelectronics

Product Category :

Audio Amplifiers

Terminal Pitch :

1.7mm

Power Dissipation :

43W

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Bandwidth :

22 kHz

Radiation Hardening :

No

RoHS Status :

Non-RoHS Compliant

Nominal Supply Current :

6A

Max Power Dissipation :

43W

Output Power :

45W

Gain :

26 dB

Number of Pins :

11

Number of Channels :

1

Max Output Power x Channels @ Load :

65W x 1 @ 2 Ω

Supply Voltage-Min (Vsup) :

8V

Common Mode Rejection Ratio :

70 dB

ECCN Code :

EAR99

Supply Voltage-Max (Vsup) :

18V

Pin Count :

11

Supply Type :

Single

Harmonic Distortion :

10%

Operating Supply Voltage :

15V

Max Output Power :

65W

Voltage Gain :

26dB

Power Supply Rejection Ratio (PSRR) :

60dB

Output Type :

1-Channel (Mono)

Mount :

Through Hole

Number of Terminations :

11

Quiescent Current :

100mA

HTS Code :

8542.33.00.01

Lead Free :

Lead Free

Terminal Position :

Zig-Zag

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Voltage - Supply :

8V~18V

Mounting Type :

Through Hole

Base Part Number :

TDA7396

Type :

Class AB

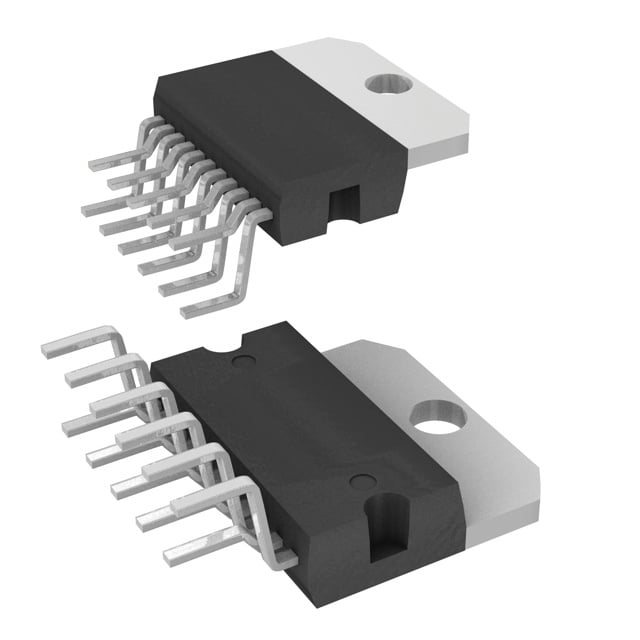

Package / Case :

Multiwatt-11 (Vertical, Bent and Staggered Leads)

Operating Temperature :

-40°C~150°C TJ

Input Bias Current :

10μA

Feature :

Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby

Packaging :

Tube
