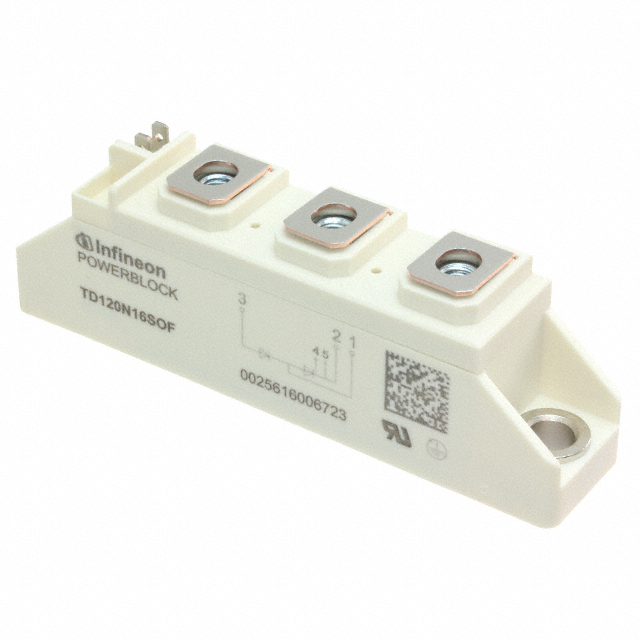

TD120N16SOFHPSA1

Manufacturer :

Infineon Technologies

Product Category :

Thyristors - SCRs - Modules

Lead Free :

Lead Free

Packaging :

Bulk

Terminal Form :

UNSPECIFIED

Number of Elements :

1

Surface Mount :

No

Mounting Type :

Surface Mount

Number of SCRs, Diodes :

2 SCRs

Current - Gate Trigger (Igt) (Max) :

100mA

Current - Hold (Ih) (Max) :

250mA

Operating Temperature :

130°C TJ

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

IEC-60747-6

Current - On State (It (RMS)) (Max) :

190A

Number of Terminations :

5

Max Forward Surge Current (Ifsm) :

1.9kA

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Case Connection :

Isolated

Current - On State (It (AV)) (Max) :

119A

Repetitive Peak Off-state Voltage :

1600V

Factory Lead Time :

16 Weeks

Structure :

Series Connection - All SCRs

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Package / Case :

Module

Published :

2012

Trigger Device Type :

SCR

Additional Feature :

UL RECOGNIZED

Configuration :

SINGLE WITH BUILT-IN DIODE

Terminal Position :

UPPER

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

JESD-30 Code :

R-XUFM-X5

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Halogen Free :

Not Halogen Free
