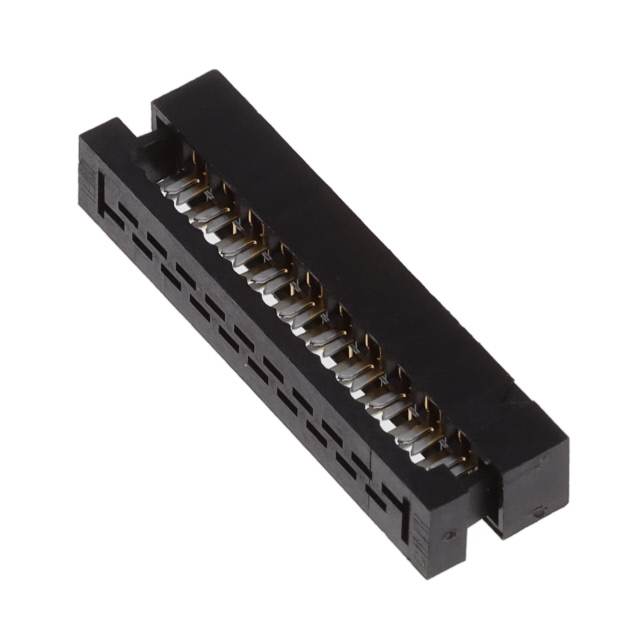

TCSD-10-01
Or copy the link below:
- Mfr.Part #
- TCSD-10-01
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS IDC 28AWG GOLD
- Stock
- 847
- In Stock ：
- 847
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Free Hanging, Panel Mount
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Housing Material :
- Polyester
- Wire Gauge :
- 28 AWG
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 3 Weeks
- Color :
- Black
- Pitch :
- 0.079 2.00mm
- Number of Rows :
- 2
- Wire/Cable Gauge :
- 28 AWG
- Mount :
- Free Hanging
- Contact Finish Thickness :
- 30.0μin 0.76μm
- RoHS Status :
- ROHS3 Compliant
- Termination :
- IDT
- Published :
- 2006
- HTS Code :
- 8536.69.40.40
- Current Rating :
- 1A
- Plating Thickness :
- 30μin
- Wire Type :
- Ribbon Cable
- Contact Design :
- PREASSEM CONN
- Reference Standard :
- UL
- Min Operating Temperature :
- -40°C
- Feature :
- Feed Through, Polarizing Key
- Contact Resistance :
- 10MOhm
- Mounting Type :
- Free Hanging (In-Line)
- Connector Type :
- Receptacle
- Wire/Cable Type :
- Ribbon
- Total Number of Contacts :
- 20
- Contact Finish :
- Gold
- Contact Type :
- Female Socket
- Packaging :
- Tube
- Depth :
- 4mm
- Body Breadth :
- 0.157 inch
- Row Spacing :
- 0.079 (2.00mm)
- Number of Positions :
- 20
- Orientation :
- RIGHT ANGLE
- Series :
- Tiger Eye™ TCSD
- Contact Material :
- Copper
- Polarization Key :
- POLARIZED HOUSING
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- REACH SVHC :
- No SVHC
- Cable Termination :
- IDC
- Length :
- 24mm
- Datasheets
- TCSD-10-01
