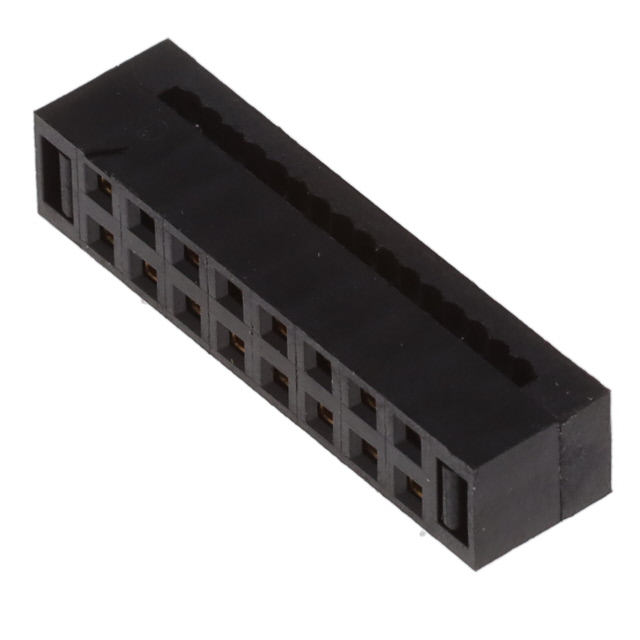

TCSD-08-01
Or copy the link below:
- Mfr.Part #
- TCSD-08-01
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS IDC 28AWG GOLD
- Stock
- 592
- In Stock ：
- 592
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Free Hanging, Panel Mount
- Feature :
- Feed Through, Polarizing Key
- REACH SVHC :
- No SVHC
- Number of Positions :
- 16
- Current Rating :
- 1A
- Pitch :
- 0.079 2.00mm
- Row Spacing :
- 0.079 (2.00mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Body Breadth :
- 0.157 inch
- Contact Finish :
- Gold
- Contact Design :
- PREASSEM CONN
- Housing Material :
- Polyester
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 2
- Fastening Type :
- Push-Pull
- Published :
- 2009
- Contact Type :
- Female Socket
- Contact Material :
- Copper
- Reference Standard :
- UL
- Orientation :
- RIGHT ANGLE
- Series :
- Tiger Eye™ TCSD
- Wire Type :
- Ribbon Cable
- Mounting Option 1 :
- LOCKING
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 28 AWG
- Connector Type :
- Receptacle
- Packaging :
- Tube
- Depth :
- 4mm
- Plating Thickness :
- 30μin
- Cable Termination :
- IDC
- Max Operating Temperature :
- 105°C
- Total Number of Contacts :
- 16
- Color :
- Black
- Length :
- 20mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 3 Weeks
- Radiation Hardening :
- No
- Min Operating Temperature :
- -40°C
- Max Current Rating :
- 1A
- Contact Resistance :
- 10MOhm
- Termination :
- IDT
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- HTS Code :
- 8536.69.40.40
- Datasheets
- TCSD-08-01
TCSD-08-01 Documents
TCSD-08-01-N datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Samtec Inc. stock available at Xinshop
