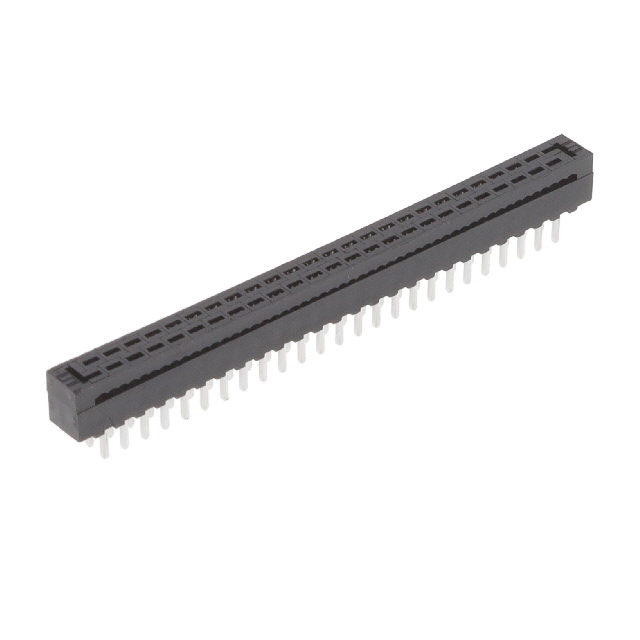

TCMD-25-01
Or copy the link below:
- Mfr.Part #
- TCMD-25-01
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 50POS IDC 28AWG GOLD
- Stock
- 250
- In Stock ：
- 250
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Free Hanging, Panel Mount
- Published :
- 2009
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Series :
- Tiger Eye™ TCMD
- Number of Positions :
- 50
- Row Spacing :
- 0.079 (2.00mm)
- Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 3 Weeks
- Length :
- 54mm
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Current Rating :
- 1A
- Wire Type :
- Ribbon Cable
- Feature :
- Feed Through
- Pitch :
- 0.079 2.00mm
- Termination :
- IDT
- Total Number of Contacts :
- 50
- Filter Feature :
- No
- Max Operating Temperature :
- 105°C
- Gender :
- Male
- Housing Material :
- Polyester
- Contact Resistance :
- 10MOhm
- Pbfree Code :
- yes
- Lead Pitch :
- 2mm
- Number of Rows :
- 2
- Wire/Cable Gauge :
- 28 AWG
- REACH SVHC :
- No SVHC
- MIL Conformance :
- No
- Contact Finish :
- Tin
- Wire Gauge :
- 28 AWG
- IEC Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Bronze
- Min Operating Temperature :
- -40°C
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 4mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- DIN Conformance :
- No
- Packaging :
- Tube
- Cable Termination :
- IDC
- Datasheets
- TCMD-25-01
