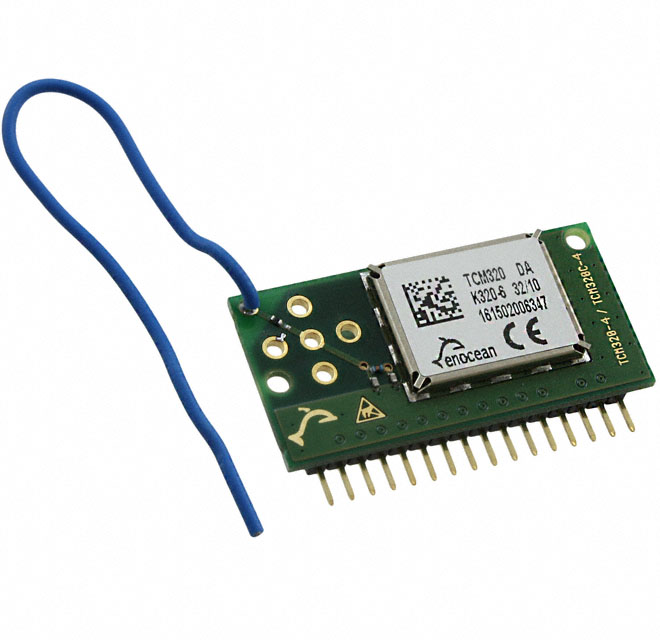

TCM320
Or copy the link below:
- Mfr.Part #
- TCM320
- Manufacturer
- EnOcean
- Package / Case
- Module
- Datasheet
- Download
- Description
- RX TXRX MOD ISM<1GHZ WHIP ANT TH
- Stock
- 86
- In Stock ：
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EnOcean
- Product Category :
- RF Transceiver Modules and Modems
- Sensitivity (dBm) :
- -98 dBm
- Max Operating Temperature :
- 85°C
- Current - Receiving :
- 33mA
- Max Frequency :
- 868.3MHz
- Package / Case :
- Module
- Data Rate :
- 125Kbps
- Current - Transmitting :
- 24mA
- Height :
- 5.5mm
- RoHS Status :
- ROHS3 Compliant
- Voltage - Supply :
- 2.6V~3.3V
- Frequency :
- 868MHz
- Antenna Type :
- Integrated, Whip
- Min Supply Voltage :
- 2.6V
- Mount :
- Through Hole
- Memory Size :
- 32kB Flash 2kB SRAM
- Modulation :
- ASK
- Mounting Type :
- Through Hole
- Sensitivity :
- -96dBm
- Packaging :
- Tray
- Power - Output :
- 5.2dBm
- Width :
- 18mm
- RF Family/Standard :
- General ISM < 1GHz
- Min Operating Temperature :
- -25°C
- REACH SVHC :
- No SVHC
- Operating Temperature :
- -25°C~85°C
- Length :
- 36.5mm
- Factory Lead Time :
- 8 Weeks
- Max Supply Voltage :
- 3.3V
- Nominal Supply Current :
- 24mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- TCM320
TCM320 Documents
868MHz General ISM < 1GHz -25°C~85°C 2.6V~3.3V Tray Integrated, Whip 125kbps 5.2dBm -96dBm Module
TCM320 Overview
As far as RF Transceiver' mounting is concerned, Through Hole is adopted.Ideally, Transceiver RF's supply voltage should be 3.3V.optimized performance is achieved by utilizing the Tray package in this RF Transceiver module.During Transceiver operation, the operating temperature should remain at -25°C~85°C.It is possible to supply 2.6V~3.3V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 868MHz Hz.This Transceiver is widely used in many applications because of its Through Hole mount.
TCM320 Features
Through Hole
3.3V volts
Tray package
2.6V~3.3V volts
TCM320 Applications
There are a lot of Enocean
TCM320 RF Transceiver Modules applications.
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
- Smart Meters
- HVAC
