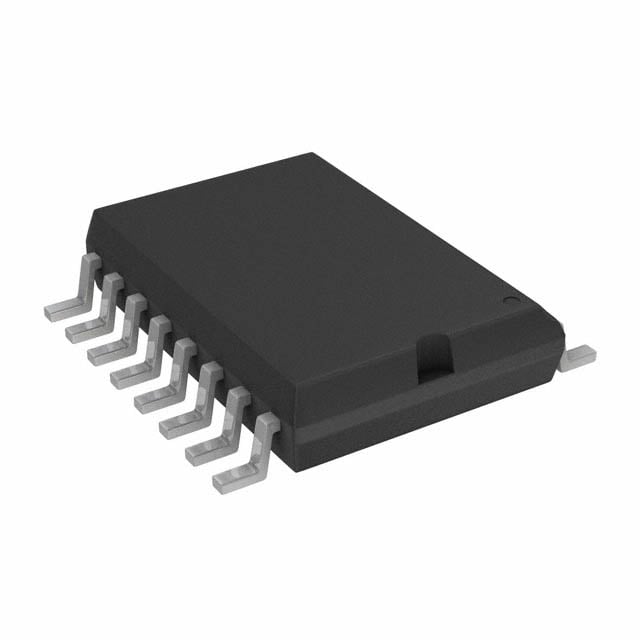

TC4468EOE
Or copy the link below:
- Mfr.Part #
- TC4468EOE
- Manufacturer
- Microchip Technology
- Package / Case
- 16-SOIC (0.295, 7.50mm Width)
- Datasheet
- Download
- Description
- IC GATE DRVR LOW-SIDE 16SOIC
- Stock
- 11,419
- In Stock ：
- 11,419
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Gate Drivers
- RoHS Status :
- ROHS3 Compliant
- Supplier Package :
- SOIC W
- Series :
- --
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- Brand :
- Microchip Technology / Atmel
- Terminal Position :
- Dual
- Product Type :
- Gate Drivers
- Gate Type :
- N-Channel, P-Channel MOSFET
- Mounting Style :
- SMD/SMT
- Configuration :
- Non-Inverting
- Turn On Delay Time :
- 75 ns
- Driver Configuration :
- Non-Inverting
- Number of Terminations :
- 16
- Product Status :
- Active
- Fall Time (Typ) :
- 25 ns
- Terminal Form :
- Gull wing
- Output Current :
- 1.2 A
- Current - Peak Output (Source, Sink) :
- 1.2A 1.2A
- Number of Pins :
- 16
- Pin Count :
- 16
- Published :
- 2002
- Minimum Operating Temperature :
- - 40 C
- Driver Type :
- Low Side
- Surface Mount :
- yes
- Logic Voltage - VIL, VIH :
- 0.8V 2.4V
- Operating Temperature :
- -40°C~150°C TJ
- Base Product Number :
- TC4468
- REACH SVHC :
- No SVHC
- Mounting Type :
- Surface Mount
- Manufacturer :
- Microchip
- Packaging :
- Tube
- RoHS :
- Details
- Voltage - Supply :
- 4.5V~18V
- Package / Case :
- 16-SOIC (0.295, 7.50mm Width)
- Rise Time :
- 25ns
- Screening Level :
- Industrial
- Width :
- 7.59mm
- Power Dissipation :
- 760mW
- Number of Outputs :
- 4
- Operating Supply Voltage :
- 4.5 V to 18 V
- Terminal Pitch :
- 1.27mm
- Supplier Device Package :
- 16-SOIC
- Operating Supply Current :
- 4 mA
- Channel Type :
- Independent
- JESD-609 Code :
- e3
- Length :
- 10.49mm
- Input Logic Compatibility :
- CMOS
- Number of Drivers :
- 4
- Maximum Operating Temperature :
- + 85 C
- Height :
- 2.34mm
- Minimum Operating Supply Voltage :
- 4.5 V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Rise / Fall Time (Typ) :
- 15ns 15ns
- Factory Lead Time :
- 4 Weeks
- Max Power Dissipation :
- 760mW
- Product Category :
- Gate Drivers
- Max Supply Current :
- 4mA
- Input Type :
- Non-Inverting
- Maximum Operating Supply Voltage :
- 18 V
- Mounting :
- Surface Mount
- Package :
- Tube
- Base Part Number :
- TC4468
- Nominal Supply Current :
- 4mA
- Type :
- Low-Side
- Max Output Current :
- 1.2A
- Propagation Delay :
- 75 ns
- MSL :
- MSL 1 - Unlimited
- Product :
- MOSFET Gate Drivers
- Terminal Finish :
- Matte Tin (Sn) - annealed
- Driven Configuration :
- Low-Side
- Peak Output Current :
- 1.2 A
- Datasheets
- TC4468EOE
TC4468EOE Documents
Gate Drivers Microchip Technology TC4468EOE Overview
The Gate Drivers Microchip Technology TC4468EOE is a high-performance, low-side gate driver designed to efficiently control MOSFETs and IGBTs. Engineered by Microchip Technology, this IC excels in applications demanding high-speed operation and robust drive capabilities. Its 16SOIC package allows for compact PCB designs while providing adequate thermal management and reliability essential for high power applications. The integration of quadruple drivers ensures that the TC4468EOE can handle multiple outputs simultaneously, enhancing system responsiveness and efficiency.
TC4468EOE Features
The TC4468EOE gate driver is packed with features tailored for superior control of power devices. Key attributes include a wide operating voltage range, high peak output current capability, and matched rise and fall times to minimize switching losses. It also boasts a logic-level input compatible with standard microcontrollers, making it an excellent choice for sophisticated power management systems.
TC4468EOE Applications
- Motor Control: Utilized in driving the gates of MOSFETs or IGBTs for brushless DC, stepper, and AC induction motors.
- Switch Mode Power Supplies (SMPS): Employs in various topologies of SMPS to enhance efficiency by driving the low-side switches effectively.
- LED Lighting: Used in LED lighting systems to drive switching transistors, enabling precise control over light intensity and color.
- Automotive Applications: Integral in automotive electronics for controlling power switches in vehicle power management systems.
