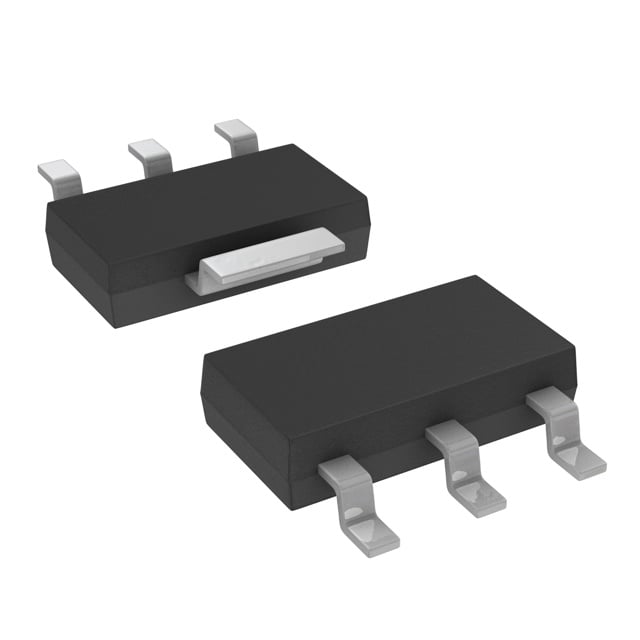

TC1262-5.0VDB

Manufacturer :

Microchip Technology

Product Category :

Voltage Regulators - Linear

Number of Functions :

1

Factory Lead Time :

10 Weeks

Number of Outputs :

1

Terminal Finish :

Matte Tin (Sn)

Operating Temperature Classification :

Automotive

Input Voltage (Min) :

2.7(V)

Polarity Type :

Positive

Output Current :

0.5 A

Dropout Voltage1-Nom :

0.35V

Number of Regulators :

1

Voltage Dropout (Max) :

0.65V @ 500mA

Voltage - Output (Max) :

--

Output Voltage :

5V

Series :

--

Brand :

Microchip Technology / Atmel

JESD-30 Code :

R-PDSO-G4

Number of Terminations :

4

Dropout Voltage@Current (Max) :

0.03@100uA

Output Configuration :

Positive

Junction to Ambient :

59 °C/W

Voltage Regulator Type :

LDO

Supplier Package :

SOT-223

Dropout Voltage@Current (Typ) :

0.02@100uA

Mount :

Surface Mount

Number of Pins :

3

Function :

LDO

Package Type :

SOT-223

PSRR :

64dB (1kHz)

Height :

1.7mm

Product Status :

Active

Dropout Voltage :

350mV

ECCN Code :

EAR99

MSL :

MSL 1 - Unlimited

Load Regulation :

0.002 %/mA

Manufacturer :

Microchip

Current - Output :

500mA

Product Type :

LDO Voltage Regulators

Tolerance :

2 %

Radiation Hardening :

No

Control Features :

--

RoHS Status :

ROHS3 Compliant

Terminal Form :

Gull wing

Polarity :

Positive

Regulator Output Type :

FIXED

Mounting Style :

SMD/SMT

Voltage - Input (Max) :

6V

Screening Level :

Extended

Input Voltage Range :

6 to 2.7 V

Peak Reflow Temperature (Cel) :

260

Max Output Current :

500mA

Pbfree Code :

yes

Line Regulation :

0.003 %/V

Maximum Input Voltage :

6 V

Terminal Position :

Dual

Maximum Operating Temperature :

+ 125 C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Base Product Number :

TC1262

Package :

Tube

Output Type :

FIXED

Current - Quiescent (Iq) :

130μA

REACH SVHC :

No SVHC

Mounting Type :

Surface Mount

Operating Temp Range :

-40C to 125C

Topology :

LDO

RoHS :

Details

JESD-609 Code :

e3

Min Input Voltage :

2.7V

Pin Count :

4

Operating Temperature :

-40°C~125°C

Output Voltage 1 :

5V

Mounting :

Surface Mount

Product Category :

LDO Voltage Regulators

Length :

6.7mm

Width :

3.7mm

Protection Features :

Over Current, Over Temperature

Minimum Operating Temperature :

- 40 C

Base Part Number :

TC126

Output Voltage Accuracy :

±0.5 %

Qualification :

AEC-Q100

Input Voltage :

6(V)

Accuracy :

0.5 %

Package / Case :

TO-261-4, TO-261AA

Time@Peak Reflow Temperature-Max (s) :

40

Voltage Tolerance-Max :

2.5%

Supplier Device Package :

SOT-223-3

Packaging :

Tube

Rad Hardened :

No

Type :

LDO

Voltage - Output (Min/Fixed) :

5V
