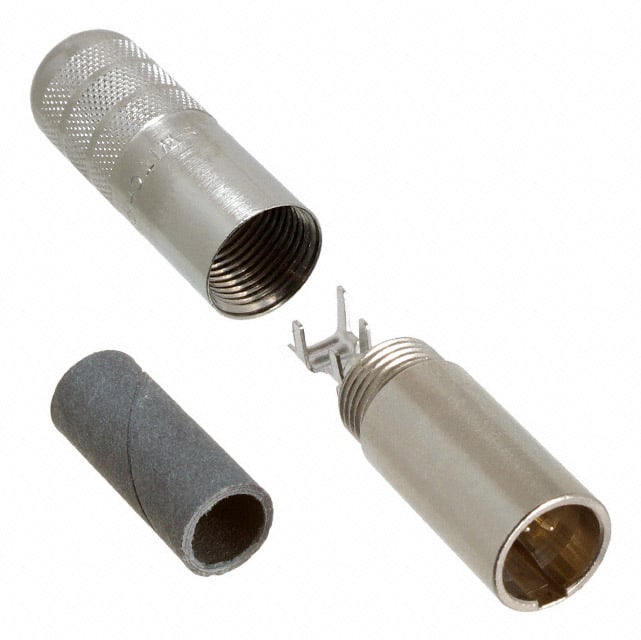

TA6MSH

Manufacturer :

Switchcraft / Conxall

Product Category :

Circular Connector Assemblies

Mount :

Free Hanging

Backshell Material, Plating :

Copper Alloy, Nickel

Gender :

Male

Applications :

Audio, Medical

Mounting Type :

Free Hanging (In-Line)

Contact Finish - Mating :

Silver

DIN Conformance :

No

ECCN Code :

EAR99

Voltage - Rated :

125VAC

Packaging :

Bulk

Number of Positions :

6

Number of Poles :

6

JESD-609 Code :

e4

Shell Size - Insert :

Mini XLR

Reach Compliance Code :

not_compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Backshell, Cable Clamp, Ground, Strain Relief

Fastening Type :

Latch Lock

Orientation :

Keyed

Shell Finish :

Nickel

IEC Conformance :

No

Configuration :

1X1 VERTICAL

Termination :

Solder Cup

Contact Material :

COPPER ALLOY

Insert Material :

Thermoplastic

Cable Opening :

0.240 (6.10mm)

RoHS Status :

ROHS3 Compliant

Shielding :

Shielded

Material Flammability Rating :

UL94 V-0

Published :

2010

Current Rating :

1.5A

MIL Conformance :

No

Connector Type :

Receptacle, Male Pins

Factory Lead Time :

12 Weeks

Operating Temperature :

-55°C~85°C

Series :

Tini Q-G® TA

Number of Ports :

1

Option :

GENERAL PURPOSE

Shell Material :

COPPER ALLOY
