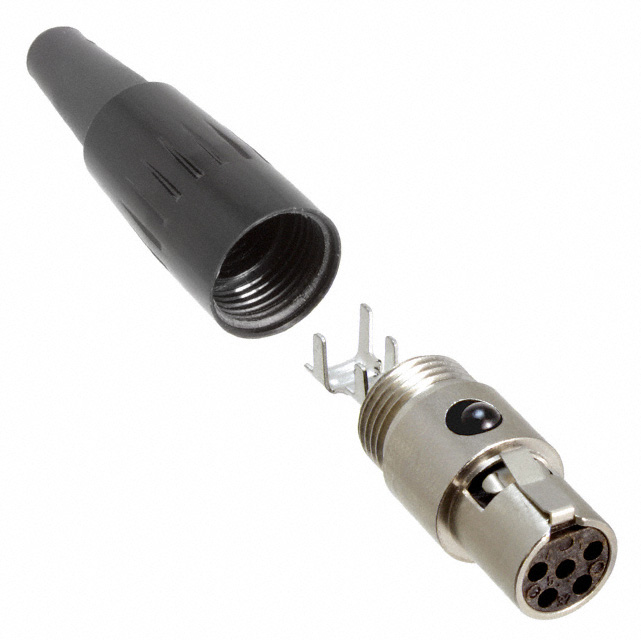

TA5FX
Or copy the link below:
- Mfr.Part #
- TA5FX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN PLUG FMALE MINI XLR 5P SLDR
- Stock
- 1,103
- In Stock ：
- 1,103
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Feature :
- Backshell, Cable Clamp, Strain Relief
- Backshell Material, Plating :
- Thermoplastic
- Max Current Rating :
- 4A
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Latch Lock
- Current Rating (Amps) :
- 4A
- Shielding :
- Shielded
- Contact Plating :
- Silver, Tin
- Mounting Type :
- Free Hanging (In-Line)
- Contact Resistance :
- 10MOhm
- Termination :
- Solder
- Operating Temperature :
- -55°C~85°C
- Gender :
- FEMALE
- Min Operating Temperature :
- -55°C
- Number of Terminations :
- 5
- Max Voltage Rating (AC) :
- 125V
- Contact Finish - Mating :
- Silver
- Housing Material :
- Zinc
- Package / Case :
- Metal
- Number of Contacts :
- 5
- Approval Agency :
- UL
- Connector Type :
- Plug, Female Sockets
- REACH SVHC :
- No SVHC
- Length :
- 48mm
- Lead Free :
- Lead Free
- Insert Material :
- Thermoplastic
- Packaging :
- Bulk
- Shell Finish :
- Nickel
- Shell Material :
- COPPER ALLOY
- Current Rating :
- 4A
- Insulation Material :
- Plastic
- Number of Ports :
- 1
- Voltage - Rated :
- 125VAC
- Mount :
- Cable, Free Hanging
- Shell Size - Insert :
- Mini XLR
- Series :
- Tini Q-G® TA-X
- Published :
- 1998
- Factory Lead Time :
- 8 Weeks
- Voltage - Rated DC :
- 125V
- Body Material :
- Metal
- Voltage - Rated AC :
- 125V
- Number of Positions :
- 5
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Gender :
- FEMALE
- Applications :
- Audio
- Max Operating Temperature :
- 85°C
- Plating :
- Nickel
- Orientation :
- Keyed
- Material :
- Brass
- Cable Opening :
- 0.065 ~ 0.155 (1.65mm ~ 3.94mm)
- Color :
- Black, Silver
- Datasheets
- TA5FX
Plug, Female Sockets Copper Alloy Free Hanging (In-Line) 5 Positions Solder Silver Nickel Bulk Keyed Latch Lock
TA5FX Overview
Packaging is Plug, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Tini Q-G® TA-X Series, it can be found in this category.Temperatures below 85°C are best for using it.There's a minimum temperature of -55°C for this device.An enclosed device is enclosed in the packaging with the Metal.With its Backshell, Cable Clamp, Strain Relief feature, it is more powerful in many ways.In this case, Cable, Free Hanging mounts the part.The device is operating at -55°C~85°C Operating Temperature.
TA5FX Features
5 basic kinds of terminations
Tini Q-G® TA-X series
TA5FX Applications
There are a lot of Switchcraft Inc.
TA5FX Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
