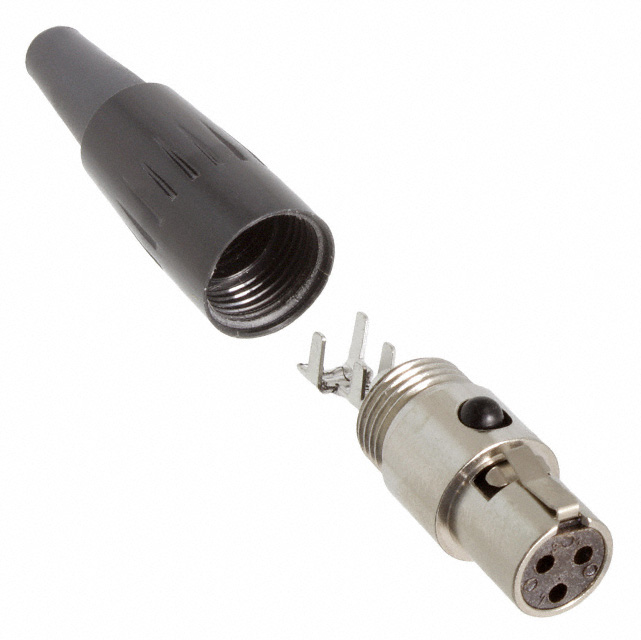

TA3FX
Or copy the link below:
- Mfr.Part #
- TA3FX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG FMALE MINI XLR 3P SLDR
- Stock
- 3,057
- In Stock ：
- 3,057
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Number of Poles :
- 3
- Series :
- Tini Q-G® TA-X
- MIL Conformance :
- No
- Approval Agency :
- UL
- Backshell Material, Plating :
- Thermoplastic
- Current Rating :
- 5A
- Option :
- GENERAL PURPOSE
- Published :
- 1998
- Color :
- Black, Silver
- Connector Type :
- Plug, Female Sockets
- Voltage - Rated AC :
- 125V
- Packaging :
- Bulk
- Contact Plating :
- Silver, Tin
- Housing Material :
- Zinc
- Operating Temperature :
- -55°C~85°C
- Insulation Material :
- Plastic
- Shell Size - Insert :
- Mini XLR
- Pbfree Code :
- yes
- Shell Material :
- COPPER ALLOY
- Cable Opening :
- 0.065 ~ 0.155 (1.65mm ~ 3.94mm)
- Contact Finish - Mating :
- Silver
- Diameter :
- 10.5mm
- IEC Conformance :
- No
- Number of Ports :
- 1
- Lead Free :
- Lead Free
- Body Material :
- Metal
- Additional Feature :
- LATCHED
- Max Voltage Rating (AC) :
- 125V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- REACH SVHC :
- No SVHC
- Material :
- Brass
- DIN Conformance :
- No
- Mount :
- Cable, Free Hanging
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 8 Weeks
- Voltage - Rated DC :
- 125V
- Contact Gender :
- FEMALE
- Shielding :
- Shielded
- Max Current Rating :
- 5A
- Termination :
- Solder
- Number of Positions :
- 3
- Length :
- 48mm
- Mounting Type :
- Free Hanging (In-Line)
- Applications :
- Audio
- Orientation :
- Keyed
- Feature :
- Backshell, Cable Clamp, Strain Relief
- Fastening Type :
- Latch Lock
- Contact Resistance :
- 10MOhm
- RoHS Status :
- ROHS3 Compliant
- Shell Finish :
- Nickel
- Datasheets
- TA3FX
Plug, Female Sockets Copper Alloy Free Hanging (In-Line) 3 Positions Solder Silver Nickel Bulk Keyed Latch Lock
TA3FX Overview
The product comes in a package of Plug, Female Sockets.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Tini Q-G® TA-X Series.Among other features are LATCHED, to name only a few.It is more powerful in many ways due to its Backshell, Cable Clamp, Strain Relief feature.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -55°C~85°C.
TA3FX Features
Tini Q-G® TA-X series
TA3FX Applications
There are a lot of Switchcraft Inc.
TA3FX Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
