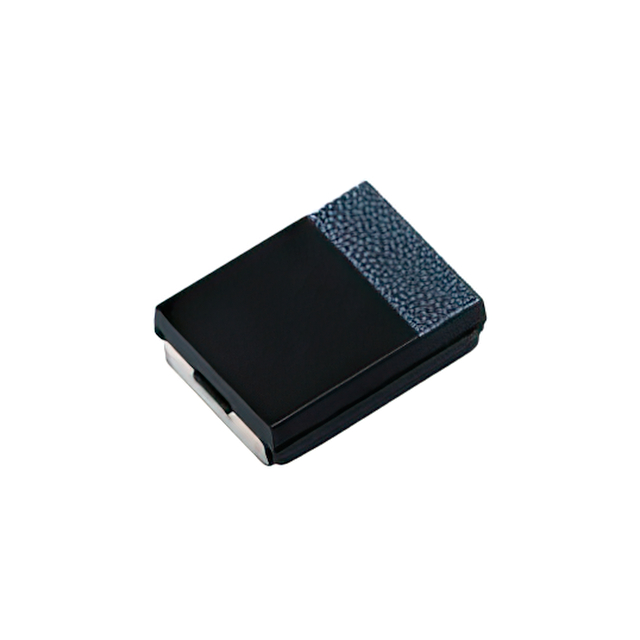

T51V337M2R5C0040

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Mounting Type :

Surface Mount

Product Status :

Active

Tolerance :

20 %

Product Length :

7.3mm

Capacitance :

330 uF

Lifetime @ Temp. :

2000 Hrs @ 125°C

Operating Temperature :

-55°C ~ 125°C

Technology :

Tantalum

Product Height :

1.9mm

Series :

T51

RoHS :

Details

ESR (Equivalent Series Resistance) :

40mOhm @ 100kHz

Product :

Tantalum Organic Polymer Low ESR

Ripple Current :

2.16A

Product Width :

4.3mm

Ratings :

AEC-Q200

Voltage - Rated :

2.5 V

Qualification :

AEC-Q200

Tradename :

vPolyTan

Package/Case :

7343-20

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

Height :

1.9 mm

Minimum Operating Temperature :

- 55 C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

ESR :

40 Ohms

Manufacturer Size Code :

V

Lead Spacing :

-

Type :

Molded

Voltage :

2.5V DC

Width :

4.3 mm

Capacitance Tolerance :

± 20%

Length :

7.3 mm

Package / Case :

2917 (7343 Metric)

Diameter :

-

Packaging :

MouseReel

Features :

GENERAL PURPOSE

Maximum Operating Temperature :

+ 125 C

Height - Seated (Max) :

0.079 (2.00mm)
