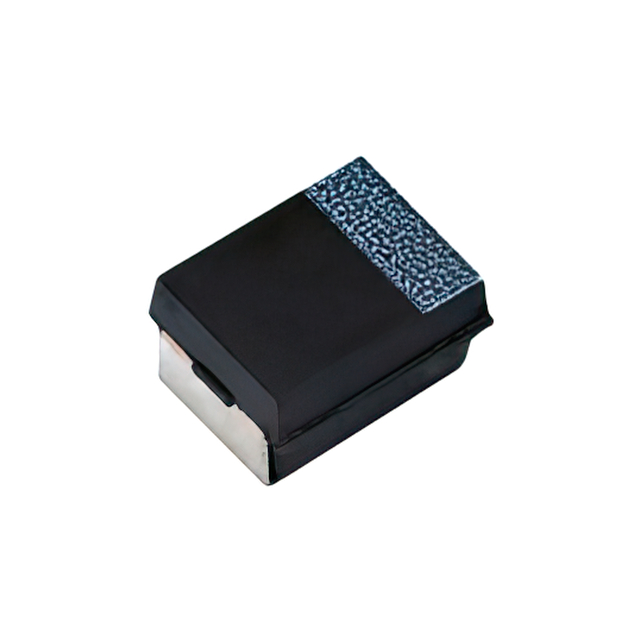

T51D156M025C0100

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Tradename :

vPolyTan

Voltage - Rated :

25 V

Lead Spacing :

-

Height :

2.8 mm

Features :

GENERAL PURPOSE

Product Status :

Active

Height - Seated (Max) :

0.122 (3.10mm)

Packaging :

MouseReel

Mounting Type :

Surface Mount

Maximum Operating Temperature :

+ 125 C

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

Product :

Tantalum Organic Polymer Low ESR

Product Length :

7.3mm

Ripple Current :

1.5A

ESR (Equivalent Series Resistance) :

100mOhm @ 100kHz

Ratings :

AEC-Q200

RoHS :

Details

Manufacturer Size Code :

D

Technology :

Tantalum

Capacitance Tolerance :

± 20%

Termination Style :

SMD/SMT

Voltage :

25V dc

Qualification :

AEC-Q200

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Package/Case :

7343-31

ESR :

100 Ohms

Product Width :

4.3mm

Width :

4.3 mm

Minimum Operating Temperature :

- 55 C

Operating Temperature :

-55°C ~ 125°C

Lifetime @ Temp. :

1000 Hrs @ 125°C

Type :

Molded

Product Height :

2.8mm

Series :

T51

Diameter :

-

Package / Case :

2917 (7343 Metric)

Capacitance :

15 uF

Tolerance :

20 %

Length :

7.3 mm
