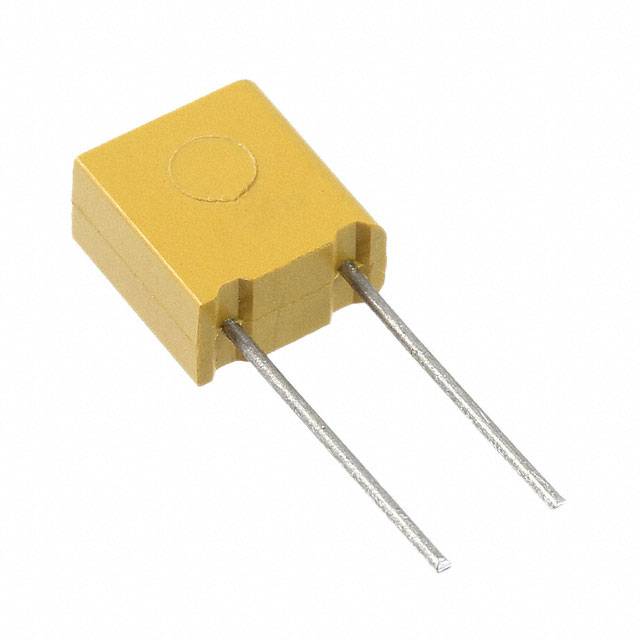

T330A685K020AS
Or copy the link below:
- Mfr.Part #
- T330A685K020AS
- Manufacturer
- KEMET
- Package / Case
- Molded
- Datasheet
- Download
- Description
- 6.80UF 20.0V
- Stock
- 30,649
- In Stock ：
- 30,649
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Tantalum Capacitors
- Min Operating Temperature :
- -55°C
- Height :
- 2.67mm
- Terminal Shape :
- Wire
- Dissipation Factor :
- 6 %
- Termination :
- Radial
- Length :
- 8.76mm
- Voltage - Rated DC :
- 20V
- Max Operating Temperature :
- 85°C
- Size Code :
- 2311
- ESR (Equivalent Series Resistance) :
- 3.6Ohm
- Reach Compliance Code :
- not_compliant
- HTS Code :
- 8532.21.00.80
- Terminal Finish :
- Tin/Lead (Sn60Pb40)
- JESD-609 Code :
- e0
- Package / Case :
- Molded
- Lead Pitch :
- 3.18mm
- Pbfree Code :
- No
- Depth :
- 2.67mm
- Current - Leakage :
- 1μA
- Diameter :
- 2.41mm
- Surface Mount :
- No
- Tan Delta :
- 0.06
- ECCN Code :
- EAR99
- Capacitance :
- 6.8μF
- Polarity :
- POLARIZED
- Number of Terminations :
- 2
- Width :
- 5.84mm
- Packaging :
- Bulk
- Tolerance :
- 10%
- RoHS Status :
- Non-RoHS Compliant
- Mounting Feature :
- THROUGH HOLE MOUNT
- Dielectric :
- Tantalum
- Datasheets
- T330A685K020AS
T330A685K020AS Documents
6.8μF 10% 85°C-Max -55°C-Min 3.6Ohm 2-Termination POLARIZED Bulk Molded
T330A685K020AS Overview
In a simple circuit consisting of a resistor and a perfect capacitor, equivalent series resistance (ESR) determines the amount of valuable energy lost. All circuits with a resistor and a capacitor have 3.6Ohm as their resistance.Dissipation factor is the amount of power lost by a capacitor when AC is applied through it, and this capacitor has dissipation factor 6 %.Insulating oil has a tan delta of 0.06 when it goes through an electric dielectric test to determine its quality.
T330A685K020AS Features
the dissipation factor is 6 %
its tan delta is 0.06
T330A685K020AS Applications
There are a lot of KEMET
T330A685K020AS applications of tantalum capacitors.
- Computer
- General purpose
- General low power DC/DC and LDO
- Automotive ECU
- ABS
- Airbag systems
- Avionics,
- Industrial control units
- Military / aerospace
- General purpose
