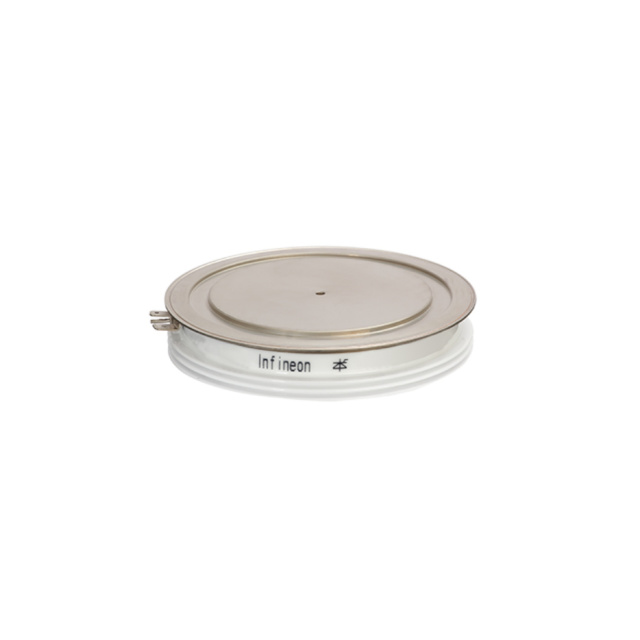

T2001N36TOFXPSA1

Manufacturer :

Infineon Technologies

Product Category :

Thyristors - SCRs - Modules

Package / Case :

DO-200AE

Lead Free :

Lead Free

Number of Elements :

1

Mount :

Screw

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Operating Temperature :

-40°C~125°C

Number of SCRs, Diodes :

1 SCR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Hold Current :

350mA

Current - On State (It (RMS)) (Max) :

29900A

Published :

2003

Structure :

Single

Packaging :

Tray

Mounting Type :

Chassis Mount

Current - On State (It (AV)) (Max) :

1900A

Repetitive Peak Off-state Voltage :

3600V

Current Rating :

2.84kA

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

DC Gate Trigger Current-Max :

300mA

Number of Pins :

4

Voltage - Off State :

3600V

Factory Lead Time :

40 Weeks

Number of Terminations :

4

Halogen Free :

Halogen Free

Trigger Device Type :

SCR

Circuit Type :

PCT

Terminal Position :

END

Terminal Form :

UNSPECIFIED

Current - Non Rep. Surge 50, 60Hz (Itsm) :

44000A @ 50Hz

Max Repetitive Reverse Voltage (Vrrm) :

3.6kV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
