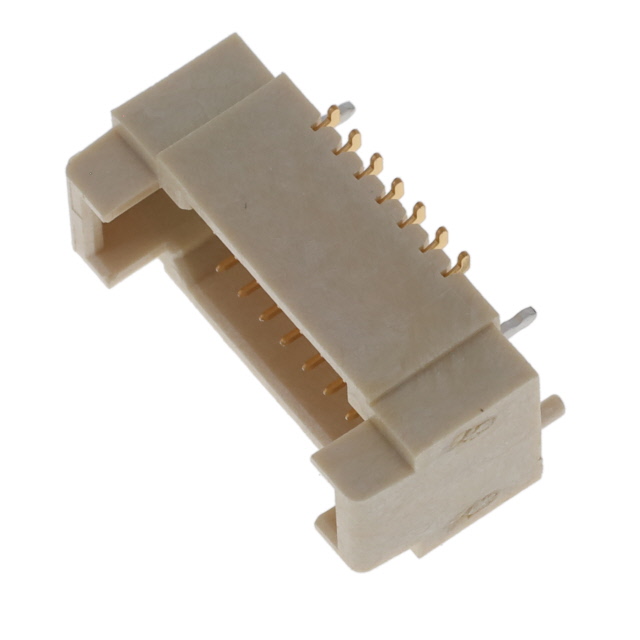

T1M-07-GF-DV
Or copy the link below:
- Mfr.Part #
- T1M-07-GF-DV
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 14POS 1MM
- Stock
- 314
- In Stock ：
- 314
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Row Spacing - Mating :
- 0.077 (1.96mm)
- Style :
- Board to Cable/Wire
- Packaging :
- Tube
- Number of Positions :
- 14
- Pitch - Mating :
- 0.039 1.00mm
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3.3A per Contact
- Contact Finish Thickness - Mating :
- 3.00μin 0.076μm
- Insulation Height :
- 0.268 6.80mm
- Contact Shape :
- Square
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 250VAC 353VDC
- Series :
- T1M
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 3 Weeks
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -55°C~85°C
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 3.00μin 0.076μm
- Datasheets
- T1M-07-GF-DV
T1M Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 14-Position Board to Cable/Wire 0.268 6.80mm Height
T1M-07-GF-DV Overview
You get it in Header packaging.Mounting type Surface Mount is selected for the device.Packaged in a Tube case.A member of the T1M Series.Device runs in -55°C~85°C operating temperature.
T1M-07-GF-DV Features
T1M series
T1M-07-GF-DV Applications
There are a lot of Samtec Inc.
T1M-07-GF-DV Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
