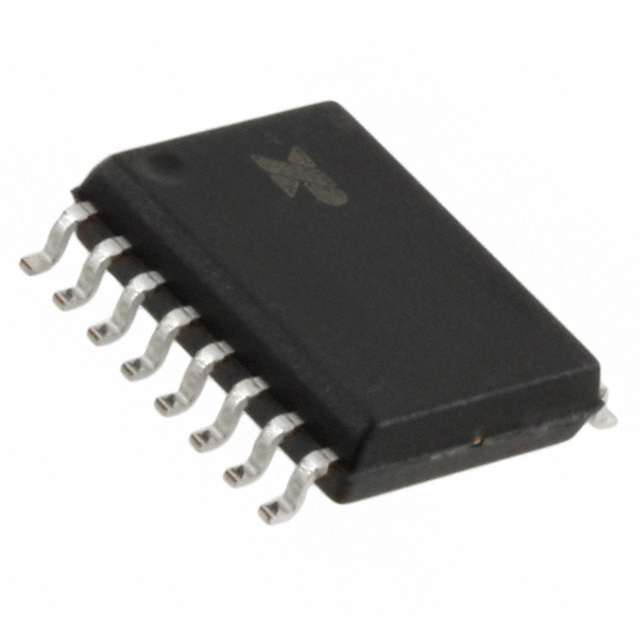

SP202EET-L/TR

Manufacturer :

MaxLinear

Product Category :

Drivers, Receivers, Transceivers

Height Seated (Max) :

2.65mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Type :

Transceiver

Number of Drivers/Receivers :

2/2

Duplex :

Full

Operating Temperature :

-40°C~85°C

Terminal Position :

Dual

Differential Output :

No

Input Characteristics :

Schmitt Trigger

Receiver Number of Bits :

2

Packaging :

Tape and Reel (TR)

Length :

10.3mm

Terminal Form :

Gull wing

Data Rate :

240kbps

Mounting Type :

Surface Mount

Terminal Pitch :

1.27mm

Driver Number of Bits :

2

Protocol :

RS232

Width :

7.5mm

Voltage - Supply :

4.5V~5.5V

JESD-609 Code :

e3

Receiver Hysteresis :

500mV

HTS Code :

8542.39.00.01

Terminal Finish :

Matte Tin (Sn)

Surface Mount :

yes

Qualification Status :

Not Qualified

Supply Voltage :

5V

Interface Standard :

EIA-232-D; V.28

Number of Functions :

2

Transmit Delay-Max :

3000 ns

Time@Peak Reflow Temperature-Max (s) :

40

RoHS Status :

RoHS Compliant

Package / Case :

16-SOIC (0.295, 7.50mm Width)

Receive Delay-Max :

1000 ns

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

16

JESD-30 Code :

R-PDSO-G16
