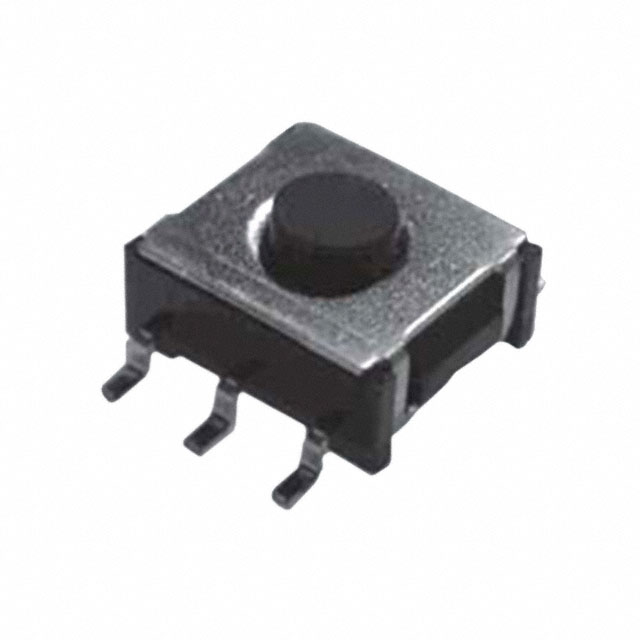

SMT1-01E-Z
Or copy the link below:
- Mfr.Part #
- SMT1-01E-Z
- Manufacturer
- Nidec Copal Electronics
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 48V
- Stock
- 10,149
- In Stock ：
- 10,149
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nidec Copal Electronics
- Product Category :
- ECCN Code :
- EAR99
- Packing Method :
- Tape and Reel
- Electrical Life :
- 1000000 Cycle(s)
- Outline :
- 7.50mm x 6.50mm
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealing :
- WATER PROOF
- Packaging :
- Tape and Reel (TR)
- Published :
- 2016
- Voltage - Rated :
- 48V
- Actuator Orientation :
- Top Actuated
- Switch Travel :
- 0.50mm
- Operating Force :
- 200gf
- HTS Code :
- 8536.50.90.40
- Series :
- SMT1
- Switch Function :
- Off-Mom
- Circuit :
- SPST-NO
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -25°C~70°C
- Number of Switches :
- 1
- Contact (DC) Max Rating R Load :
- .05A@48VDC
- JESD-609 Code :
- e4
- Contact Current(DC)-Max :
- 0.05A
- Contact Plating :
- Silver
- Switch Type :
- KEYPAD SWITCH
- Power Rating :
- 1W
- Body Breadth :
- 6.5 mm
- Termination :
- Gull wing
- Illumination :
- Non-Illuminated
- Throw Configuration :
- SPST
- Package / Case :
- SMD/SMT
- Mechanical Life :
- 100,000 Cycles
- Length :
- 10mm
- Actuator Height off PCB, Vertical :
- 4.00mm
- Reach Compliance Code :
- Unknown
- Termination Style :
- Gull wing
- Width :
- 7.5mm
- Height :
- 4.2mm
- RoHS Status :
- ROHS3 Compliant
- Actuator Type :
- Standard
- Contact Rating @ Voltage :
- 0.05A @ 48VDC
- Datasheets
- SMT1-01E-Z
