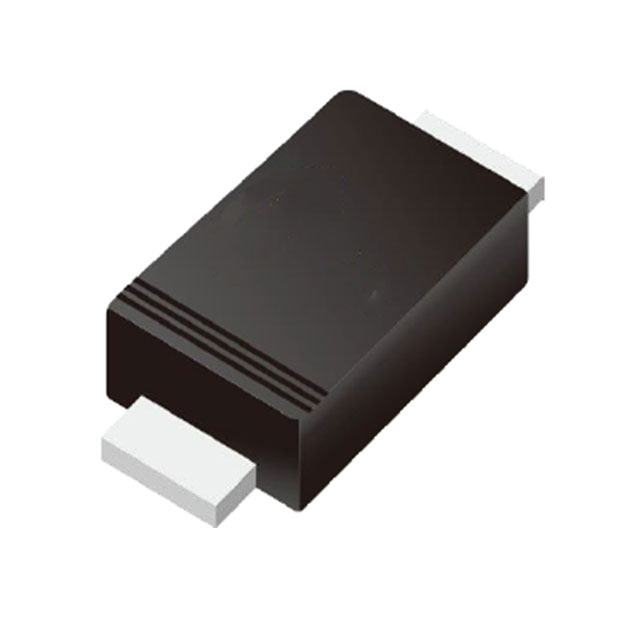

SMF20A

Manufacturer :

MDD

Product Category :

Lead Free :

Lead Free

Configuration :

Single

Max Surge Current :

6.2A

Time@Peak Reflow Temperature-Max (s) :

40

Number of Terminations :

2

Terminal Finish :

Matte Tin (Sn)

Type :

Zener

Peak Pulse Power :

200W

Applications :

GENERAL PURPOSE

JESD-609 Code :

e3

Mount :

Surface Mount

Peak Reflow Temperature (Cel) :

260

Voltage - Reverse Standoff (Typ) :

20V

Package / Case :

SOD-123F

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Published :

2014

Power Line Protection :

No

Series :

SMF

Polarity :

Unidirectional

Leakage Current :

1μA

Number of Elements :

1

Reverse Breakdown Voltage :

22.2V

Terminal Position :

Dual

Factory Lead Time :

20 Weeks

Peak Pulse Current :

6.2A

Terminal Form :

Flat

Breakdown Voltage :

24.5V

Clamping Voltage :

32.4V

REACH SVHC :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Test Current :

1mA

Number of Pins :

2

Reverse Standoff Voltage :

20V

Diode Element Material :

SILICON

Max Breakdown Voltage :

24.5V

Operating Temperature :

-55°C~150°C TJ

Additional Feature :

EXCELLENT CLAMPING CAPABILITY

Packaging :

Cut Tape (CT)

Unidirectional Channels :

1

Termination :

SMD/SMT
