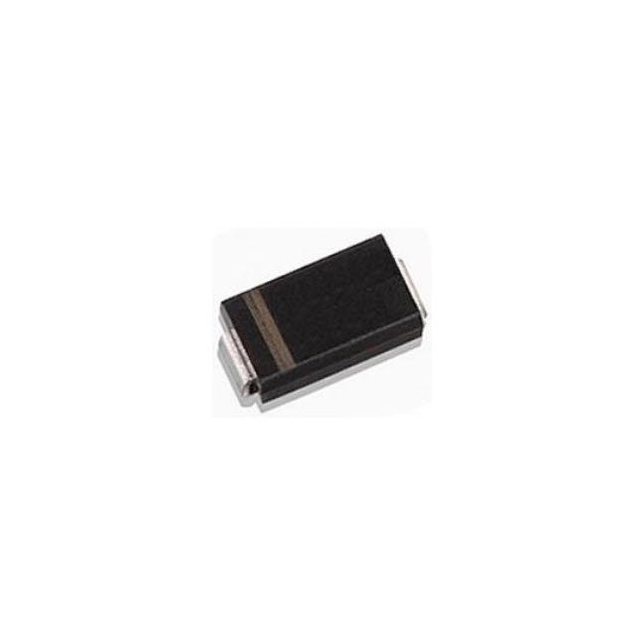

SMAJ100

Manufacturer :

Meritek

Product Category :

Length :

5.28mm

Voltage - Breakdown (Min) :

111V

Package / Case :

DO-214AC, SMA

Number of Unidirectional Channels :

1

Reverse Standoff Voltage :

100V

Clamping Voltage :

162V

Termination :

SMD/SMT

Voltage - Rated DC :

100V

Power - Peak Pulse :

400W

Current - Peak Pulse (10/1000μs) :

2.5A

Mounting Type :

Surface Mount

Composition :

Zener

Number of Elements :

1

Operating Temperature :

-65°C~150°C TJ

Published :

2009

Power Dissipation :

400W

Lead Free :

Lead Free

Test Current :

1mA

Number of Channels :

1

Unidirectional Channels :

1

Peak Pulse Power :

400W

Direction :

Unidirectional

REACH SVHC :

No SVHC

Height :

2.29mm

Type :

Zener

Power Line Protection :

No

Width :

2.79mm

Max Surge Current :

2.5A

Packaging :

Tape and Reel (TR)

Peak Pulse Current :

2.5A

Max Operating Temperature :

150°C

RoHS Status :

ROHS3 Compliant

Supplier Device Package :

DO-214AC (SMA)

Voltage - Clamping (Max) @ Ipp :

162V

Max Power Dissipation :

3.3W

Mount :

Surface Mount

Leakage Current :

1μA

Reverse Breakdown Voltage :

111V

Voltage - Reverse Standoff (Typ) :

100V

Power Rating :

400W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Supply Voltage :

100V

Min Operating Temperature :

-55°C

Polarity :

Unidirectional

Number of Pins :

2

Applications :

GENERAL PURPOSE

Factory Lead Time :

18 Weeks

Max Breakdown Voltage :

123V

Series :

SMAJ

Breakdown Voltage :

111V
