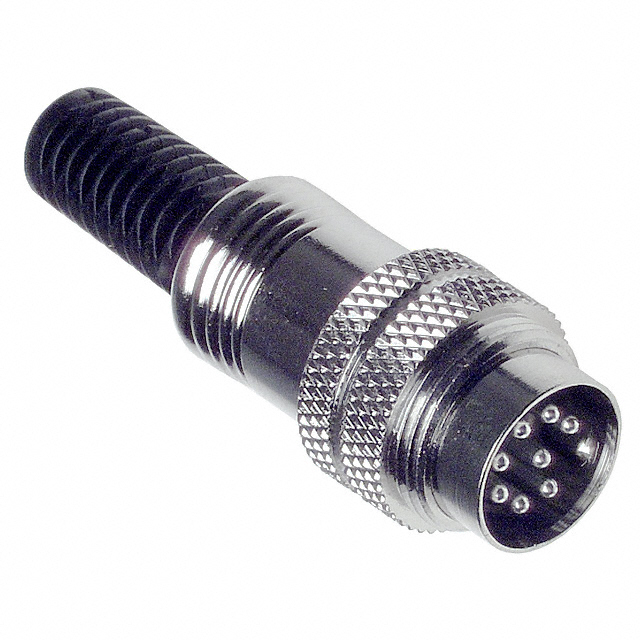

SD-80LP
Or copy the link below:
- Mfr.Part #
- SD-80LP
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MALE DIN 8P SOLDER
- Stock
- 802
- In Stock ：
- 802
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- ZINC ALLOY
- Contact Material :
- Brass
- Mounting Type :
- Free Hanging (In-Line)
- Number of Contacts :
- 8
- Series :
- SD-LP
- Connector Type :
- Plug, Male Pins
- Contact Finish - Mating :
- Silver
- Termination :
- Solder
- Packaging :
- Bulk
- Color :
- Silver
- Operating Temperature :
- -40°C~85°C
- Shell Finish :
- Nickel
- Shell Size - Insert :
- DIN 270 Degree
- Current Rating :
- 2A
- Voltage - Rated :
- 100VAC
- Feature :
- Coupling Nut, Strain Relief
- Number of Positions :
- 8
- Orientation :
- Keyed
- Fastening Type :
- Threaded
- RoHS Status :
- RoHS Compliant
- Shielding :
- Shielded
- Cable Opening :
- 0.315 (8.00mm)
- Current Rating (Amps) :
- 2A
- Factory Lead Time :
- 10 Weeks
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 85°C
- Lead Free :
- Lead Free
- Mount :
- Free Hanging
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Datasheets
- SD-80LP
Plug, Male Pins Zinc Alloy Free Hanging (In-Line) 8 Positions Solder Silver Nickel Bulk Keyed Threaded
SD-80LP Overview
The product comes in a package of Plug, Male Pins.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the SD-LP Series.Use it when the temperature is below 85°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Coupling Nut, Strain Relief feature.It is mounted by Free Hanging.It operates at an operating temperature of -40°C~85°C.
SD-80LP Features
SD-LP series
SD-80LP Applications
There are a lot of CUI Devices
SD-80LP Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
