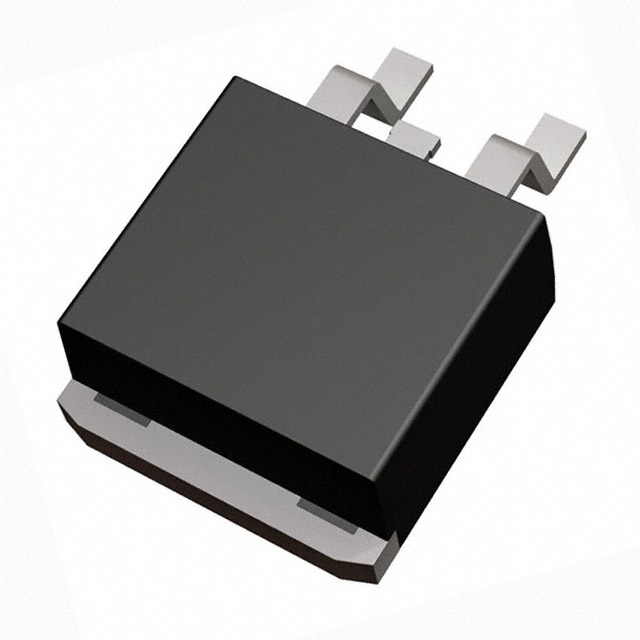

SCS206AJTLL
- Mfr.Part #
- SCS206AJTLL
- Manufacturer
- ROHM Semiconductor
- Package / Case
- TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
- Datasheet
- Download
- Description
- DIODE SCHOTTKY 650V 6A TO263AB
- Stock
- 4,665
- In Stock :
- 4,665
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ROHM Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Capacitance @ Vr, F :
- 219pF @ 1V 1MHz
- Max Reverse Voltage (DC) :
- 600V
- Max Power Dissipation :
- 48W
- Additional Feature :
- PD-CASE
- HTS Code :
- 8541.10.00.80
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Phases :
- 1
- Factory Lead Time :
- 20 Weeks
- Min Operating Temperature :
- -55°C
- Terminal Position :
- Single
- Forward Current :
- 6A
- Number of Elements :
- 1
- Packaging :
- Cut Tape (CT)
- Max Repetitive Reverse Voltage (Vrrm) :
- 650V
- Operating Temperature - Junction :
- 175°C Max
- Current - Average Rectified (Io) :
- 6A DC
- Max Forward Surge Current (Ifsm) :
- 24A
- Forward Voltage :
- 1.35V
- Number of Terminations :
- 2
- Package / Case :
- TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
- Max Operating Temperature :
- 175°C
- Natural Thermal Resistance :
- 3.1 °C/W
- REACH SVHC :
- No SVHC
- Mount :
- Surface Mount
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount
- Terminal Finish :
- Tin/Copper (Sn/Cu)
- Speed :
- No Recovery Time > 500mA (Io)
- Voltage - Forward (Vf) (Max) @ If :
- 1.55V @ 6A
- Diode Type :
- Silicon Carbide Schottky
- Reverse Recovery Time :
- 0 s
- Base Part Number :
- SCS206
- Output Current-Max :
- 6A
- Element Configuration :
- Common Cathode
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2009
- Terminal Form :
- Gull wing
- Average Rectified Current :
- 6A
- Reach Compliance Code :
- not_compliant
- JESD-30 Code :
- R-PSSO-G2
- Current - Reverse Leakage @ Vr :
- 120μA @ 600V
- Peak Reverse Current :
- 120μA
- Number of Pins :
- 3
- JESD-609 Code :
- e2
- ECCN Code :
- EAR99
- Datasheets
- SCS206AJTLL
SCS206AJTLL Documents

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.55V @ 6A 175°C Max 120μA @ 600V 2-Termination Cut Tape (CT) TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount
SCS206AJTLL Overview
As a result, this device has a rectified current of 6A volts on average.Phase diode rectifier is permissible for forward current to reach 6A.48W heat is lost most efficiently by electronic or electrical devices.As a measure of resistance to heat flow, thermal resistance measures the temperature difference at which a material or object resists a heat flow. The natural thermal resistance is 3.1 °C/W.Using the output current as an example, 6A is the maximum value.Based on the data charts in the datasheets, the peak reverse is 120μA.
