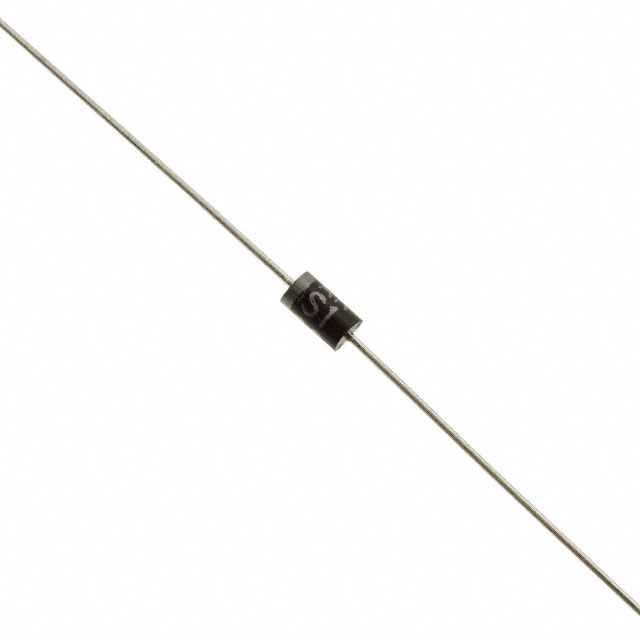

SARS02V1

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Diodes - Rectifiers - Single

Voltage - DC Reverse (Vr) (Max) :

800V

Voltage - Forward (Vf) (Max) @ If :

920mV @ 1.5A

Package / Case :

Axial

Operating Temperature - Junction :

-40°C~150°C

Terminal Form :

Wire

Operating Temperature (Max) :

150°C

Reverse Current-Max :

10μA

Average Rectified Current :

1.2A

Speed :

Standard Recovery >500ns, > 200mA (Io)

Additional Feature :

LOW NOISE

Packaging :

Tape and Box (TB)

Non-rep Pk Forward Current-Max :

100A

Max Reverse Voltage (DC) :

800V

Diode Element Material :

SILICON

Capacitance @ Vr, F :

-

Number of Phases :

1

Reverse Recovery Time (trr) :

18μs

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Configuration :

Single

Number of Terminations :

2

Diode Type :

Standard

Factory Lead Time :

12 Weeks

Number of Elements :

1

Published :

2013

Supplier Device Package :

Axial

Mounting Type :

Through Hole

Current - Average Rectified (Io) :

1.2A

Other Names :

SARS02V1CT

Reverse Recovery Time :

18 μs

Product Status :

Obsolete

RoHS Status :

RoHS Compliant

Series :

-

Package :

Cut Tape (CT);Tape and Box (TB);

Application :

EFFICIENCY

JESD-30 Code :

O-PALF-W2

Technology :

Standard

Case Connection :

Isolated

Current - Reverse Leakage @ Vr :

10μA @ 800V
