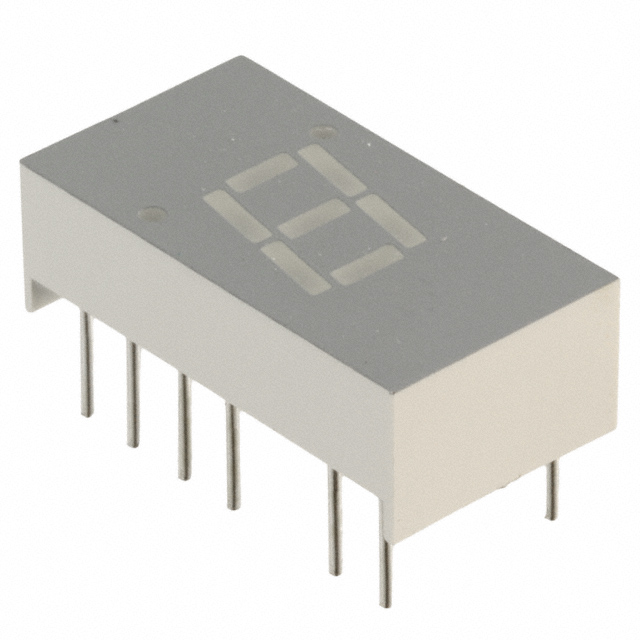

SA03-11YWA
Or copy the link below:
- Mfr.Part #
- SA03-11YWA
- Manufacturer
- Kingbright
- Package / Case
- 14-DIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- DISPLAY 7-SEG 0.3" SGL YLW 14DIP
- Stock
- 4,304
- In Stock ：
- 4,304
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kingbright
- Product Category :
- Package / Case :
- 14-DIP (0.300, 7.62mm)
- Published :
- 2006
- Digit/Alpha Size :
- 0.30 7.62mm
- Max Operating Temperature :
- 85°C
- Number of Characters :
- 1
- Pbfree Code :
- yes
- Color :
- Yellow
- Size / Dimension :
- 0.750 Hx0.400W x 0.240 D 19.06mmx10.16mmx6.10mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Number of Pins :
- 14
- Min Operating Temperature :
- -40°C
- Additional Feature :
- IC COMPATIBLE
- Display Type :
- 7-Segment
- Power Dissipation-Max :
- 75mW
- Element Configuration :
- Common Anode
- Luminous Intensity :
- 6.4 mcd
- Optoelectronic Device Type :
- SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
- Operating Supply Voltage :
- 2.1V
- Character Width :
- 7.62mm
- Common Pin :
- Common Anode
- Height :
- 19.05mm
- Number of Functions :
- 1
- Current - Test :
- 20mA
- Packaging :
- Tube
- Forward Current :
- 30mA
- Wavelength - Peak :
- 590nm
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Datasheets
- SA03-11YWA
