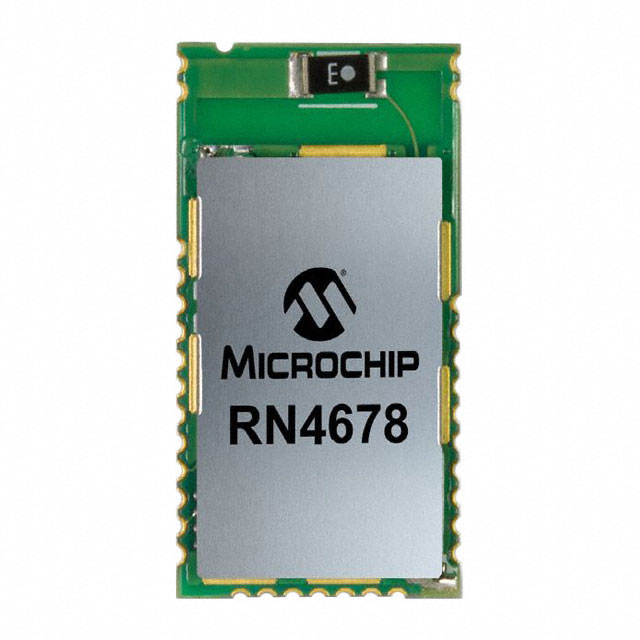

RN4678-V/RM113

Manufacturer :

Microchip Technology

Product Category :

RF Transceiver Modules and Modems

Modulation :

-

Terminal Form :

NO LEAD

Type :

Bluetooth 4.2 Dual Mode Module

Memory Size :

4MB Flash 320kB ROM 28kB SRAM

Class :

Class 2

Supply Voltage :

1.9V

Surface Mount :

yes

Rad Hardened :

No

Base Product Number :

RN4678

Reach Compliance Code :

Compliant

JESD-30 Code :

R-XXMA-N33

Operating Supply Voltage (Typ) :

1.9(V)

Frequency :

2.4GHz

Number of Functions :

1

Minimum Operating Temperature :

- 20 C

Serial Interfaces :

UART

Mounting Type :

Surface Mount

Operating Supply Voltage (Min) :

1.8(V)

Utilized IC / Part :

IS1678SM

Product :

Bluetooth Modules

Product Category :

Bluetooth Modules - 802.15.1

Operating Supply Current :

150

ISM Band :

Not Required

Height Seated (Max) :

2.4mm

Operating Temperature (Max) :

70C

Terminal Position :

UNSPECIFIED

Output Power :

1.5 dBm

Voltage - Supply :

3.3V~4.2V

Current - Receiving :

37mA

Package :

Tray

Dimensions :

22 mm x 12 mm x 2.4 mm

Sensitivity :

-92dBm

Length :

22mm

Subcategory :

Wireless and RF Modules

Mounting Style :

SMD/SMT

Telecom IC Type :

TELECOM CIRCUIT

Operating Temperature :

-20°C~70°C

Shielding :

Shielded

Protocol :

Bluetooth v5.0

Maximum Output Power :

1.5dBm

Operating Supply Voltage :

3.3, 4.2 V

Package / Case :

33-SMD Module

Product Type :

Bluetooth Modules

Data Rate (Max) :

1000(kbps)

Data Rate :

1Mbps

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Supplier Package :

SMD Module

Pin Count :

33

Series :

-

Screening Level :

TS 16949

Operating Supply Voltage (Max) :

2.1(V)

Width :

12mm

Mounting :

Surface Mount

Manufacturer :

Microchip

Package Type :

SMD Module

Product Status :

Active

Factory Lead Time :

20 Weeks

Height :

2.4 mm

RoHS :

Details

Power - Output :

1.5dBm

Brand :

Microchip Technology / Atmel

Current - Transmitting :

43mA

Operating Temperature (Min) :

-20C

Maximum Operating Temperature :

+ 70 C

Frequency Range :

2.402 GHz to 2.48 GHz

Power Class :

Class II

Antenna Type :

Integrated, Chip

Number of Terminations :

33

Maximum Data Rate :

1 Mbps

Interface Type :

UART

RF Family/Standard :

Bluetooth

Packaging :

Tray
