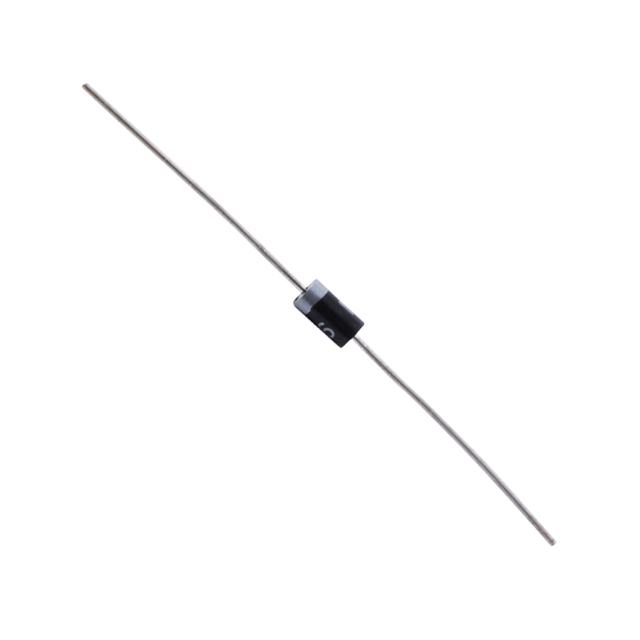

RGP15G

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Reverse Recovery Time :

150 ns

Current - Reverse Leakage @ Vr :

5µA @ 400V

Recovery Time :

150 ns

Diode Element Material :

SILICON

Reverse Voltage :

400V

Max Reverse Voltage (DC) :

400V

JESD-609 Code :

e3

Series :

SUPERECTIFIER®

Min Operating Temperature :

-65°C

HTS Code :

8541.10.00.80

Mount :

Through Hole

Max Surge Current :

50A

Published :

2016

Peak Reverse Current :

5μA

Base Part Number :

RGP15G

Packaging :

Tape and Box (TB)

Package / Case :

DO-204AC, DO-15, Axial

Operating Temperature - Junction :

-65°C~175°C

Max Operating Temperature :

175°C

Mounting Type :

Through Hole

Case Connection :

Isolated

Terminal Finish :

Matte Tin (Sn)

Peak Non-Repetitive Surge Current :

50A

Additional Feature :

FREE WHEELING DIODE, LOW LEAKAGE CURRENT

Diode Type :

Standard

Number of Terminations :

2

Max Repetitive Reverse Voltage (Vrrm) :

400V

Application :

EFFICIENCY

Element Configuration :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Voltage - Forward (Vf) (Max) @ If :

1.3V @ 1.5A

Number of Elements :

1

Factory Lead Time :

22 Weeks

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Radiation Hardening :

No

Number of Pins :

2

Pbfree Code :

yes

Terminal Form :

Wire

Average Rectified Current :

1.5A

Pin Count :

2

Number of Phases :

1

Forward Voltage :

1.3V
