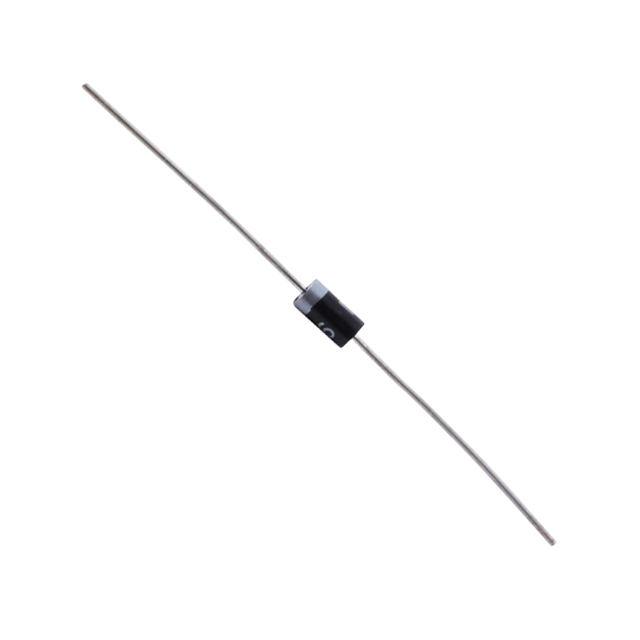

RGP15B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Application :

EFFICIENCY

Factory Lead Time :

22 Weeks

Additional Feature :

FREE WHEELING DIODE, LOW LEAKAGE CURRENT

Average Rectified Current :

1.5A

Peak Reverse Current :

5μA

Element Configuration :

Single

Max Repetitive Reverse Voltage (Vrrm) :

100V

Reverse Recovery Time :

150 ns

Diode Element Material :

SILICON

Series :

SUPERECTIFIER®

Diode Type :

Standard

Case Connection :

Isolated

Peak Non-Repetitive Surge Current :

50A

Operating Temperature - Junction :

-65°C~175°C

Pbfree Code :

yes

Number of Elements :

1

Package / Case :

DO-204AC, DO-15, Axial

Terminal Form :

Wire

Max Reverse Voltage (DC) :

100V

Current - Reverse Leakage @ Vr :

5µA @ 100V

JESD-30 Code :

O-PALF-W2

Radiation Hardening :

No

Published :

2016

Mounting Type :

Through Hole

Voltage - Forward (Vf) (Max) @ If :

1.3V @ 1.5A

Number of Terminations :

2

Max Surge Current :

50A

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8541.10.00.80

Min Operating Temperature :

-65°C

JESD-609 Code :

e3

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Pin Count :

2

Mount :

Through Hole

Base Part Number :

RGP15B

Max Operating Temperature :

175°C

Reverse Voltage :

100V

Recovery Time :

150 ns

Number of Phases :

1
