  6. RFNA4JGIMF

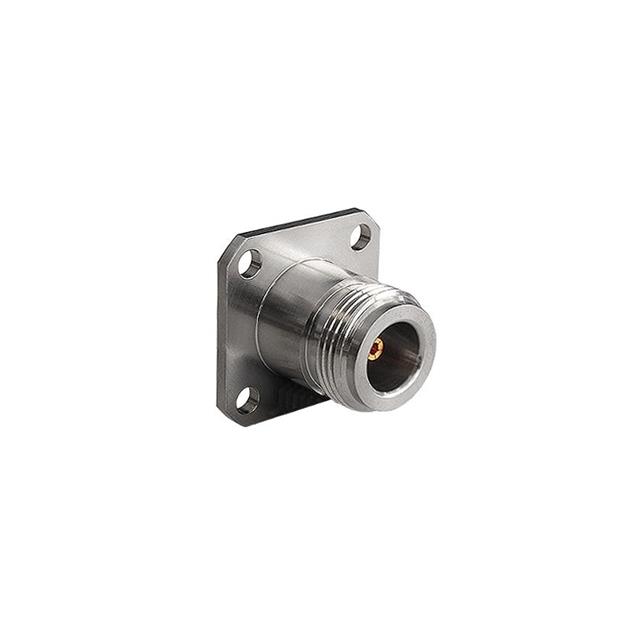

    Images are for reference only.

    Delivery：

    Payment：

    RFNA4JGIMF

    Share

    Or copy the link below:

    Mfr.Part #
    RFNA4JGIMF
    Manufacturer
    Bulgin
    Package / Case
    Datasheet
    Download
    Description
    CONN N J FLNG MNT 4HOLE
    Stock
    25
    In Stock ：
    25

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Bulgin
    Product Category :
    Coaxial Connector (RF) Assemblies
    Features :
    -
    Cable Group :
    -
    Voltage Rating :
    500 V
    Contact Plating :
    -
    Housing Color :
    Silver
    Contact Material :
    BERYLLIUM COPPER
    Series :
    -
    Base Product Number :
    RNFA
    Connector Type :
    Jack, Female Socket
    Mounting Type :
    Panel Mount, Through Hole
    Gender :
    FEMALE
    Center Contact Material :
    BERYLLIUM COPPER
    Shield Termination :
    Solder
    Dielectric Material :
    Polyetherimide (PEI)
    Mounting Feature :
    Flange
    Product Status :
    Active
    Body Finish :
    -
    Contact Termination :
    Solder
    Fastening Type :
    Threaded
    Mating Cycles :
    500
    Insertion Loss :
    -
    Frequency - Max :
    18 GHz
    Operating Temperature :
    -55°C ~ 155°C
    Body Material :
    Stainless Steel
    Body Orientation :
    Straight
    Connector Style :
    N Type
    Orientation :
    Straight
    Center Contact Plating :
    -
    Impedance :
    50Ohm
    Termination Method :
    JACK SCREW
    Number of Ports :
    1
    Includes :
    -
    Package :
    Bulk
    Ingress Protection :
    -
    Datasheets
    RFNA4JGIMF
    Introducing Coaxial Connector (RF) Assemblies Bulgin RFNA4JGIMF from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Panel Mount, Through Hole, Operating Temperature：-55°C ~ 155°C, RFNA4JGIMF pinout, RFNA4JGIMF datasheet PDF, RFNA4JGIMF amp .Beyond Coaxial Connector (RF) Assemblies Bulgin RFNA4JGIMF ,we also offer A-1JB, CONUFL001-SMD-T, 0734120114, Our vast inventory has you covered. Contact us now for immediate solutions.

    Bulgin RFNA4JGIMF


    Jack, Female Socket Threaded 50Ohm N Type Solder 1 Port Polyetherimide (PEI) -55°C ~ 155°C

    RFNA4JGIMF Overview


    Packaging for this item is Jack, Female Socket.Panel Mount, Through Hole is the type of mounting for the device.The product is a member of the - Series.The device has 1 ports for managing a variety of tasks.It operates at an operating temperature of -55°C ~ 155°C.

    RFNA4JGIMF Features


    - series


    RFNA4JGIMF Applications


    There are a lot of Bulgin
    RFNA4JGIMF Coaxial Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
