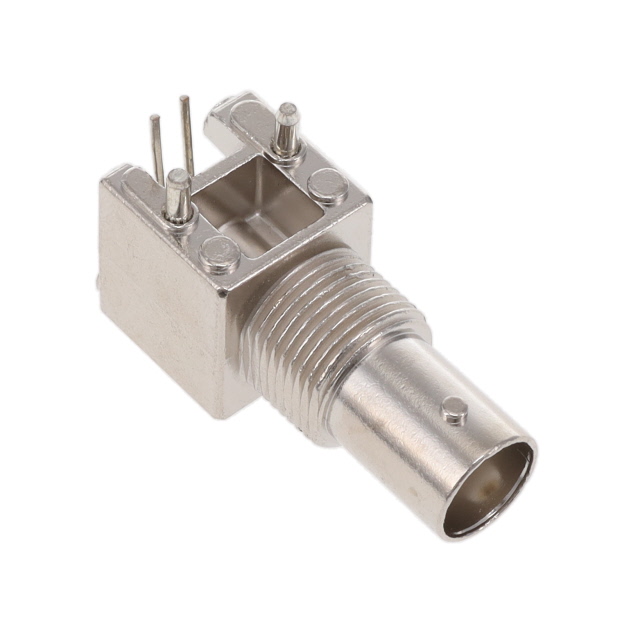

RF1-01A-D-00-75-M
Or copy the link below:
- Mfr.Part #
- RF1-01A-D-00-75-M
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- BNC R/A LOW PROFILE INSUL PCB SK
- Stock
- 1,027
- In Stock ：
- 1,027
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Coaxial Connector (RF) Assemblies
- Body Breadth :
- 0.622 inch
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 9 Weeks
- Body Length or Diameter :
- 0.575 inch
- Dielectric Material :
- Polyoxymethylene (POM) Acetal, Polypropylene (PP)
- Mounting Option 1 :
- LOCKING
- Contact Gender :
- FEMALE
- Connector Style :
- BNC
- Center Contact Plating :
- Gold
- Durability :
- 500 Cycles
- Insulator Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- Packaging :
- Bulk
- Feature :
- Code A
- Operating Temperature (Min) :
- -20°C
- Number of Ports :
- 1
- Body Finish :
- Nickel
- Withdrawl Force-Min :
- 8.896 N
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Frequency (Max) :
- 1GHz
- Contact Resistance :
- 5mOhm
- Operating Temperature (Max) :
- 85°C
- Center Contact Material :
- Phosphor Bronze
- Body/Shell Style :
- JACK
- Contact Termination :
- Solder
- Fastening Type :
- Bayonet Lock
- Connector Type :
- Plug, Male Pin
- Operating Frequency-Max :
- 6GHz
- Impedance :
- 75Ohm
- Reference Standard :
- UL, CSA
- Contact Style :
- COAX
- Additional Feature :
- RoHS Compliant
- Coupling Type :
- Threaded
- Panel Mount :
- yes
- Total Number of Contacts :
- 1
- VSWR :
- 1.2
- Body Material :
- ZINC ALLOY
- Series :
- RF
- Datasheets
- RF1-01A-D-00-75-M
RF1-01A-D-00-75-M Documents
Plug, Male Pin Bayonet Lock 75Ohm Bulk BNC Solder 1 Port Polyoxymethylene (POM) Acetal, Polypropylene (PP)
RF1-01A-D-00-75-M Overview
The product is packaged in Plug, Male Pin.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the RF Series, it can be found in this category.There are also other features such as ROHS COMPLIANT, to name only a few.A variety of tasks can be managed via its 1 ports.With its Code A feature, it is more powerful in many ways.
RF1-01A-D-00-75-M Features
RF series
RF1-01A-D-00-75-M Applications
There are a lot of Adam Tech
RF1-01A-D-00-75-M Coaxial Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
