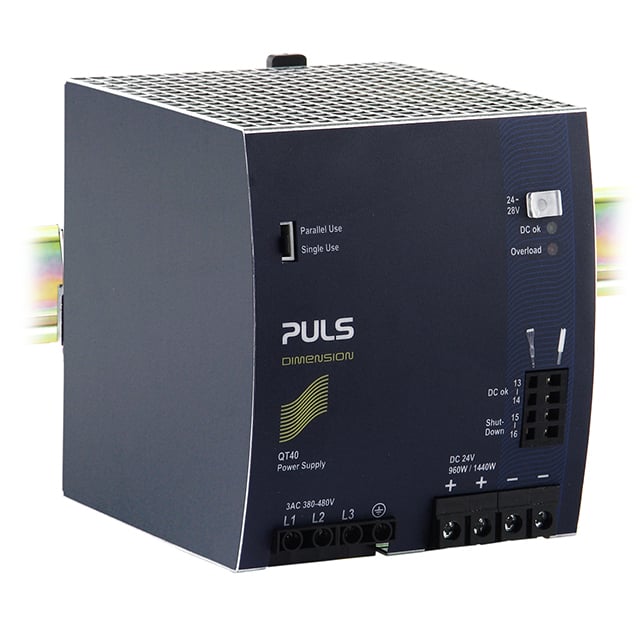

QT40.242
Or copy the link below:
- Mfr.Part #
- QT40.242
- Manufacturer
- PULS
- Package / Case
- Datasheet
- Download
- Description
- AC/DC CONVERTER 24V 960W
- Stock
- 34
- In Stock ：
- 34
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- PULS
- Product Category :
- Applications :
- ITE (Commercial)
- Voltage - Output 1 :
- 24V
- Size / Dimension :
- 5.00Lx4.33W x 4.88 H 127.0mmx110.0mmx124.0mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Factory Lead Time :
- 2 Weeks
- Voltage - Isolation :
- 500V
- Power (Watts) :
- 960W
- Type :
- Enclosed
- Mounting Type :
- DIN Rail
- Feature :
- Adjustable Output, Load Sharing, PFC
- Efficiency :
- 95.2%
- Current - Output (Max) :
- 40A
- Series :
- DIMENSION Q (960W)
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CB, cCSAus, CE, cULus, cURus
- Operating Temperature :
- -10°C~70°C With Derating
- Number of Outputs :
- 1
- Voltage - Input :
- 323V~576VAC 3 Phase
- Datasheets
- QT40.242
QT40.242 datasheet pdf and AC DC Converters product details from PULS, LP stock available at
QT40.242 Description
The most outstanding features of the DIMENSION Q-Series DIN rail power supplies are the extremely high efficiencies and the small sizes, which are achieved by synchronous rectification and other technological designs. Large power reserves of 150% support the starting of heavy loads such as DC motors or capacitive loads. In many cases, this allows the use of a unit from a lower wattage class which saves space and money.
QT40.242 Features
3AC 380-480V wide-range input
Three input fuses included
Version with extra long lifetime available
Width only 110mm, weight only 1.5kg
95.3% Full load and excellent partial load efficiencies
50% BonusPower, 1440W for up to 4s
100A Peak current for 10ms for easy fuse tripping
Active PFC (power factor correction)
Active filtering of input transients
Negligible low input inrush current surge
Full power between -25°C and +60°C
Current sharing feature for parallel use
Internal data logging for troubleshooting included
Remote control of output voltage
DC-OK relay contact
Shut-down input
3 Year warranty
QT40.242 Applications
Automotive
Infotainment & cluster
Communications equipment
Wired networking
Personal electronics
Connected peripherals & printers
