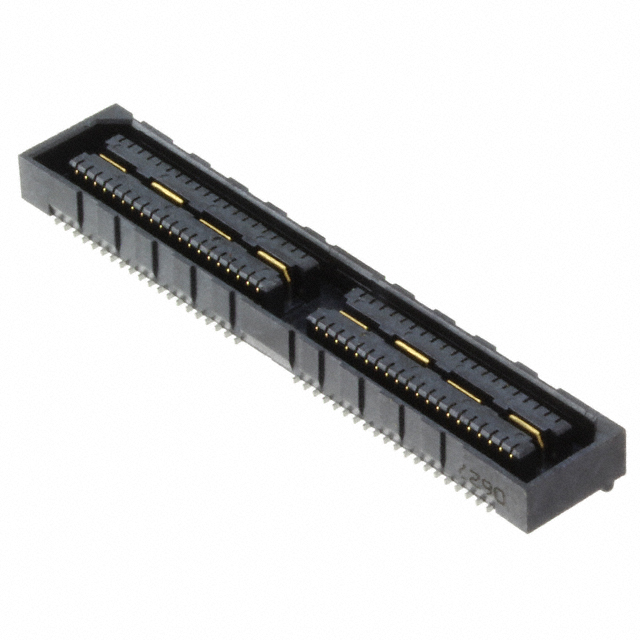

QSE-040-01-C-D-A
Or copy the link below:
- Mfr.Part #
- QSE-040-01-C-D-A
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 80POS SMD GOLD
- Stock
- 190
- In Stock ：
- 190
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Depth :
- 7.24mm
- RoHS Status :
- ROHS3 Compliant
- Stack Height (Mating) :
- 5mm 8mm 11mm 14mm 16mm 19mm 25mm
- Termination :
- Solder
- Height Above Board :
- 0.128 3.25mm
- Number of Rows :
- 2
- Number of Positions :
- 80
- Mounting Type :
- Surface Mount
- Connector Type :
- Receptacle, Center Strip Contacts
- Min Operating Temperature :
- -55°C
- Published :
- 2010
- Packaging :
- Tape and Reel (TR)
- Feature :
- Board Guide, Ground Bus (Plane), Pick and Place
- Series :
- Q Strip® QSE
- Pitch :
- 0.031 0.80mm
- Max Voltage Rating (AC) :
- 225V
- Orientation :
- Straight
- Factory Lead Time :
- 3 Weeks
- Radiation Hardening :
- No
- Pbfree Code :
- yes
- Contact Material :
- Bronze
- Length :
- 41.27mm
- Gender :
- FEMALE
- Housing Material :
- Polymer
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 125°C
- Datasheets
- QSE-040-01-C-D-A
Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 80 Positions Q Strip® QSE Gold Solder Bronze
QSE-040-01-C-D-A-K-TR Overview
A Receptacle, Center Strip Contacts package is included with it.Packaging is performed using a Tape & Reel (TR) case.Its mounting type is Surface Mount.It is part of the Q Strip® QSE Series of products.In operation, Board Guide, Ground Bus (Plane), Pick and Place may be maintained.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.
QSE-040-01-C-D-A-K-TR Features
Q Strip® QSE series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
QSE-040-01-C-D-A-K-TR Applications
There are a lot of Samtec Inc.
QSE-040-01-C-D-A-K-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
