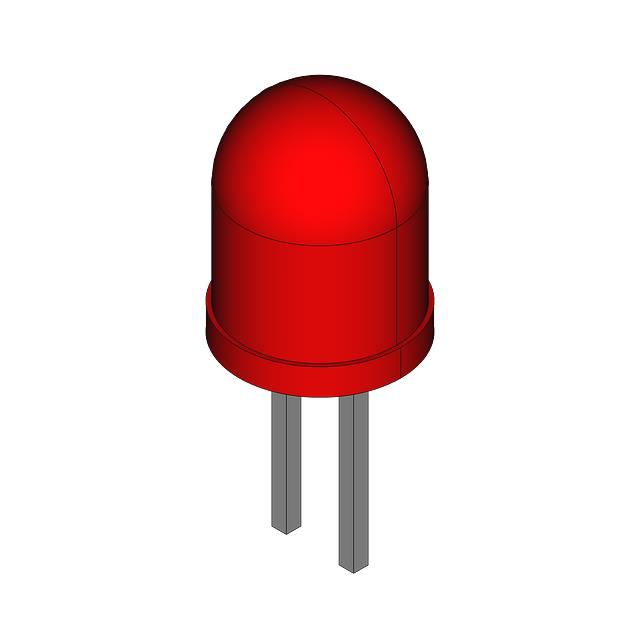

QSD123A4R0
Or copy the link below:
- Mfr.Part #
- QSD123A4R0
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- Radial, 5mm Dia (T 1 3/4)
- Datasheet
- Download
- Description
- PHOTO TRANSISTOR, 880NM
- Stock
- 1,440
- In Stock ：
- 1,440
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Optical Sensors - Phototransistors
- Shape :
- Round
- Terminal Finish :
- Tin (Sn)
- Collector Emitter Voltage (VCEO) :
- 5V
- Viewing Angle :
- 24°
- Collector Emitter Breakdown Voltage :
- 30V
- Weight :
- 284mg
- Max Power Dissipation :
- 100mW
- Number of Functions :
- 1
- Mount :
- Through Hole
- Packaging :
- Tape and Reel (TR)
- Max Collector Current :
- 16mA
- Pbfree Code :
- yes
- Rise Time :
- 7μs
- Orientation :
- Top View
- Optoelectronic Device Type :
- PHOTO TRANSISTOR
- ECCN Code :
- EAR99
- Fall Time (Typ) :
- 7 µs
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 100°C
- Dark Current :
- 100nA
- Number of Pins :
- 2
- Package / Case :
- Radial, 5mm Dia (T 1 3/4)
- Published :
- 2012
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Polarity :
- NPN
- Number of Elements :
- 1
- Max Breakdown Voltage :
- 30V
- JESD-609 Code :
- e3
- Wavelength :
- 880nm
- Mounting Type :
- Through Hole
- Size :
- 5mm
- Collector Emitter Saturation Voltage :
- 400mV
- Factory Lead Time :
- 13 Weeks
- Light Current-Nom :
- 4mA
- Min Operating Temperature :
- -40°C
- Configuration :
- Single
- Infrared Range :
- yes
- Power Dissipation :
- 100mW
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- QSD123A4R0
