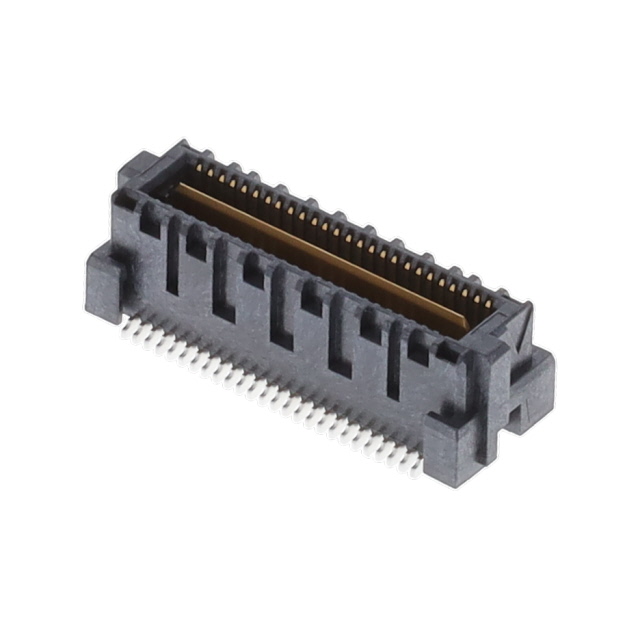

QMS-026-06.75-L-D

Manufacturer :

Samtec, Inc.

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Series :

Power Q2™ QMS

Reference Standard :

UL, CSA

Additional Feature :

Q2

Stack Height (Mating) :

11mm 13mm

Rated Current (Signal) :

1.6A

Contact Finish :

Gold

Body/Shell Style :

Receptacle

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating (AC) :

300V

Housing Material :

Polymer

Factory Lead Time :

3 Weeks

Length :

20.83mm

Radiation Hardening :

No

MIL Conformance :

No

Contact Style :

SQ PIN-SKT

Connector Type :

Header, Outer Shroud Contacts

Min Operating Temperature :

-55°C

Mixed Contacts :

No

Number of Conductors :

ONE

Number of Positions :

52

Number Of PCB Rows :

2

Total Number of Contacts :

52

REACH SVHC :

No SVHC

Mounting Option 1 :

LOCKING

DIN Conformance :

No

Option :

GENERAL PURPOSE

Max Operating Temperature :

125°C

Mating Contact Row Spacing :

0.116 inch

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulator Color :

Black

Depth :

7.26mm

Contact Pattern :

RECTANGULAR

PCB Contact Row Spacing :

6.604 mm

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Reliability :

COMMERCIAL

Insulation Resistance :

5000000000Ohm

Mounting Type :

Surface Mount

Board Mounting Option :

PEG

Height Above Board :

0.265 6.73mm

Number of Rows :

2

PCB Contact Pattern :

RECTANGULAR

Gender :

Male

Termination :

Solder

Orientation :

Straight

Packaging :

Tray

Pbfree Code :

yes

Contact Finish Thickness :

10.0μin 0.25μm

Pitch :

0.025 0.64mm

IEC Conformance :

No

Plating Thickness :

10μin

Contact Material :

Bronze

Feature :

Board Guide, Ground Bus (Plane)
