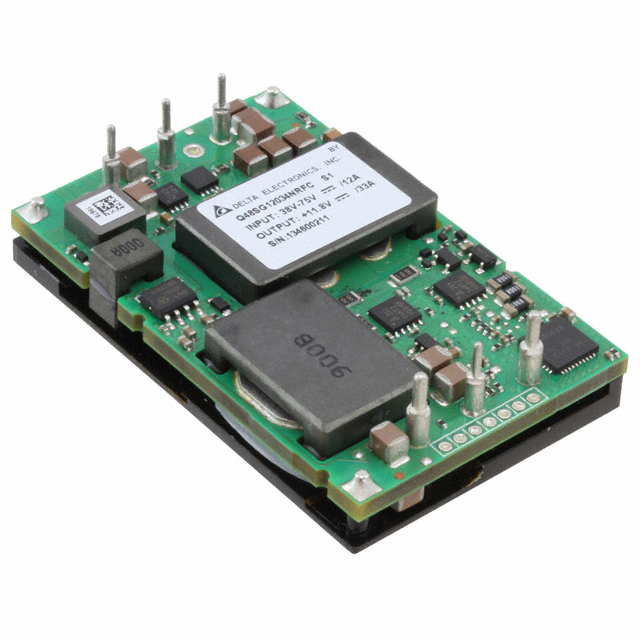

Q48SG12034NRFC

Manufacturer :

Delta Electronics

Product Category :

Size / Dimension :

2.30Lx1.45W x 0.50 H 58.4mmx36.8mmx12.7mm

Current - Output 1 :

34A

Number of Terminations :

13

Package / Case :

13-DIP Module, 1/4 Brick

Output Power :

400W

Voltage - Input (Max) :

75V

Radiation Hardening :

No

Max Power Dissipation :

400W

Applications :

ITE (Commercial)

Width :

36.8mm

Packaging :

Bulk

Length :

58.4mm

Output Current :

34A

Input Voltage-Nom :

48V

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Published :

2013

Series :

Delphi Q48SG

Voltage - Isolation :

2.25kV

Mounting Type :

Through Hole

Terminal Form :

PIN/PEG

Output Voltage :

11.8V

Control Features :

Enable, Active Low

Height :

11.176mm

Mount :

Through Hole

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Output 1 :

11.8V

Max Output Current :

34A

RoHS Status :

RoHS Compliant

Operating Temperature :

-40°C~85°C

Terminal Position :

Dual

Trim/Adjustable Output :

yes

Voltage - Input (Min) :

38V

Number of Outputs :

1

Type :

Isolated Module, Digital

Efficiency :

96%

Feature :

Remote On/Off, OCP, OTP, OVP, UVLO
