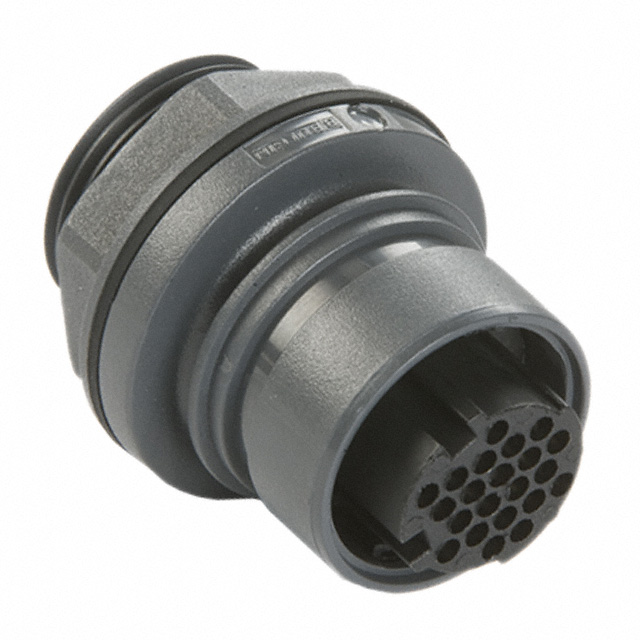

PXP6012/22S/CR
Or copy the link below:
- Mfr.Part #
- PXP6012/22S/CR
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG FMALE 22POS PNL MT
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Circular Connector Housings
- Number of Positions :
- 22 (Power)
- Packaging :
- Bulk
- Number of Pins :
- 22
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Voltage - Rated :
- 60V
- REACH SVHC :
- No SVHC
- Max Current Rating :
- 3A
- Ingress Protection :
- IP66/68/69K - Dust Tight, Water Resistant, Waterproof
- Body Material :
- PBT, PC, Polybutylene, Polycarbonate
- Hole Diameter :
- 22.5 mm
- Color :
- Grey
- Contact Gender :
- FEMALE
- Mount :
- Bulkhead, Panel, Rear Side Nut
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Connector Type :
- Receptacle Housing
- Published :
- 2012
- Length :
- 41.4mm
- Note :
- Contacts Not Included
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Shielding :
- Unshielded
- Current Rating :
- 2A
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- Keyed
- Contact Material :
- Brass
- Shell Material :
- Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
- Termination :
- Crimp
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 20 Weeks
- Contact Plating :
- Gold, Nickel
- Gender :
- Receptacle
- Type :
- For Female Sockets
- Contact Shape :
- Circular
- HTS Code :
- 8536.69.40.30
- Housing Color :
- Gray
- Series :
- Buccaneer® 6000
- Housing Material :
- PBT
- Fastening Type :
- Push-Twist
- Ratings :
- Dust Tight, IP66, Water Resistant, Waterproof
- Number of Ports :
- 1
- Operating Temperature :
- -40°C~120°C
- Feature :
- Shielded
- Contact Type :
- Crimp and Solder Cup
- Voltage - Rated DC :
- 60V
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Panel Mount
- Datasheets
- PXP6012/22S/CR
PXP6012/22S/CR Documents
Receptacle Housing Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free Panel Mount 22 (Power) Positions Bulk Push-Twist Unshielded Contacts Not Included Buccaneer® 6000
PXP6012/22S/CR Overview
The product is packaged in Receptacle Housing.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buccaneer® 6000 Series.Many of the benefits of this part can be attributed to other products from the [0] family.This can be ensured when the system is in operation by maintaining Shielded.For mounting this component, a Bulkhead, Panel, Rear Side Nut socket is required.A total of 22 pins are available on the device.The device has 1 ports that can be used to manage a variety of tasks.
PXP6012/22S/CR Features
Buccaneer® 6000 series
PXP6012/22S/CR Applications
There are a lot of Bulgin
PXP6012/22S/CR Circular Connectors applications.
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
