PXMBNI12RAF05APCM12

Share

Or copy the link below:

Mfr.Part #
PXMBNI12RAF05APCM12
Manufacturer
Bulgin
Package / Case
Datasheet
Download
Description
CONN PLUG FMALE 5POS GOLD SOLDER
Stock
23
In Stock :
23

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Bulgin
Product Category :
Circular Connector Assemblies
Orientation :
A
IP Rating :
IP67
Shell Size, MIL :
-
Product :
Connectors
Shell Material :
Brass
Applications :
Industrial
Connector Type :
Plug, Female Sockets
Material Flammability Rating :
-
Contact Finish Thickness - Mating :
-
Features :
Board Guide, Board Lock
Termination :
Solder
Shell Style :
Receptacle
Primary Material :
Metal
Base Product Number :
PXMBNI
Contact Finish - Mating :
Gold
Product Category :
Circular Metric Connectors
Contact Gender :
Socket (Female)
Contact Plating :
Gold
Mounting Type :
Panel Mount, Through Hole, Right Angle
Fastening Type :
Threaded
Voltage Rating :
60V
Body Style :
Right Angled
Insert Material :
-
Shielding :
Unshielded
Mounting Style :
Panel, Rear PCB
Mounting Feature :
Bulkhead - Rear Side Nut
Packaging :
Bulk
Body Orientation :
RIGHT ANGLE
Manufacturer :
Bulgin
Shell Size - Insert :
M12-5
Product Status :
Active
Current Rating (Amps) :
4A
Backshell Material, Plating :
-
Brand :
Bulgin
Number of Positions :
5
Shell Finish :
Nickel
Contact Material :
Phosphor Bronze
Series :
Buccaneer? M12
Number of Contacts :
5
Coding :
A
Cable Opening :
-
Package :
Bulk
Product Type :
Circular Metric Connectors
Current Rating :
4A
Ingress Protection :
IP67 - Dust Tight, Waterproof
Subcategory :
Circular Connectors
Operating Temperature :
-25°C ~ 80°C
RoHS :
Details
Housing Material :
Thermoplastic (TP)
Termination Style :
Through Hole
Termination Method :
PCB
Color :
Silver
Type :
RIGHT ANGLE
Thread Size :
M12
Introducing Circular Connector Assemblies Bulgin PXMBNI12RAF05APCM12 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Through Hole, Right Angle, Operating Temperature:-25°C ~ 80°C, Type:RIGHT ANGLE, PXMBNI12RAF05APCM12 pinout, PXMBNI12RAF05APCM12 datasheet PDF, PXMBNI12RAF05APCM12 amp .Beyond Circular Connector Assemblies Bulgin PXMBNI12RAF05APCM12 ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

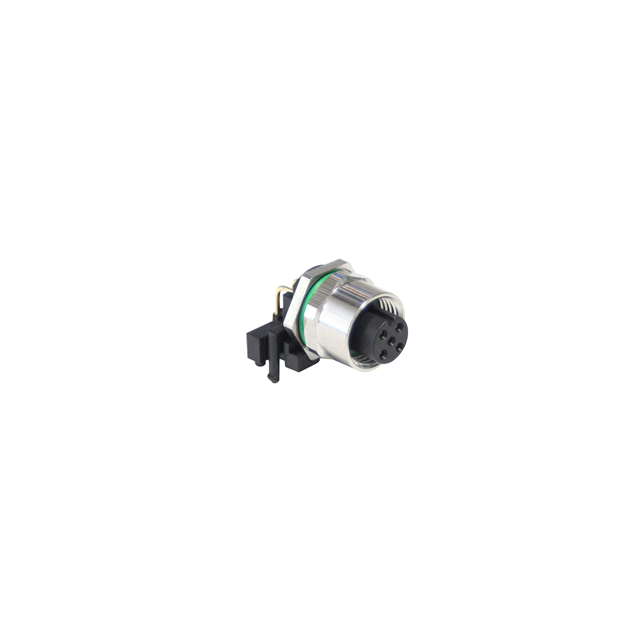

Bulgin PXMBNI12RAF05APCM12


Plug, Female Sockets Brass Panel Mount, Through Hole, Right Angle 5 Positions Solder Gold Nickel Bulk A Threaded

PXMBNI12RAF05APCM12 Overview


The product is packaged in Plug, Female Sockets.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buccaneer? M12 Series.As a result, the device runs at -25°C ~ 80°C Operating Temperature.

PXMBNI12RAF05APCM12 Features


Buccaneer? M12 series


PXMBNI12RAF05APCM12 Applications


There are a lot of Bulgin
PXMBNI12RAF05APCM12 Circular Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
