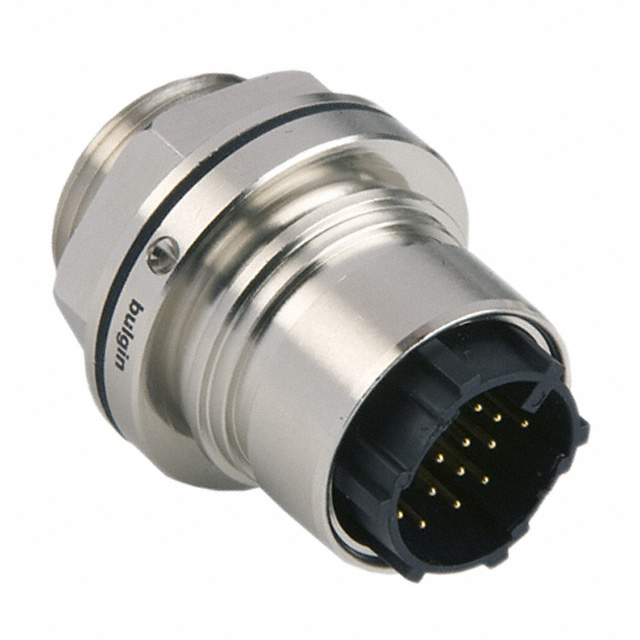

PXM6012/16P/CR
Or copy the link below:
- Mfr.Part #
- PXM6012/16P/CR
- Manufacturer
- Bulgin
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCPT HSG MALE 16POS PNL MT
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Circular Connector Housings
- Contact Type :
- Crimp and Solder Cup
- Fastening Type :
- Push-Twist
- ECCN Code :
- EAR99
- Factory Lead Time :
- 20 Weeks
- Mount :
- Bulkhead, Panel, Rear Side Nut
- REACH SVHC :
- No SVHC
- Number of Pins :
- 16
- Ratings :
- Dust Tight, IP66, Water Resistant, Waterproof
- Voltage - Rated DC :
- 60V
- Orientation :
- Keyed
- Current Rating :
- 3A
- Gender :
- Receptacle
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Number of Ports :
- 1
- HTS Code :
- 8536.69.40.30
- Shielding :
- Unshielded
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Material :
- NOT SPECIFIED
- Note :
- Contacts Not Included
- Published :
- 2012
- Length :
- 41.4mm
- Housing Color :
- Silver
- Packaging :
- Bulk
- Contact Gender :
- Male
- Shell Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~120°C
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Shell Finish :
- Nickel
- Contact Shape :
- Circular
- Connector Type :
- Receptacle Housing
- Ingress Protection :
- IP66/68/69K - Dust Tight, Water Resistant, Waterproof
- Series :
- Buccaneer® 6000
- Feature :
- Shielded
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Crimp
- Package / Case :
- Metal
- Mounting Type :
- Panel Mount
- Number of Positions :
- 16 (Power)
- Type :
- For Male Pins
- Hole Diameter :
- 22.5 mm
- Max Current Rating :
- 3A
- Voltage - Rated :
- 60V
- Datasheets
- PXM6012/16P/CR
PXM6012/16P/CR Documents
Receptacle Housing Brass Panel Mount Nickel 16 (Power) Positions Bulk Push-Twist Unshielded Contacts Not Included Buccaneer® 6000
PXM6012/16P/CR Overview
It comes in Receptacle Housing packaging.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the Buccaneer® 6000 Series of products.This part shares lots of benefits with other For Male Pins products.When operating, it is possible to ensure that Shielded is maintained.It is necessary to use a Bulkhead, Panel, Rear Side Nut socket in order to mount this part.The device is equipped with 16 pins.In the packaging with the Metal, there is a device enclosed in the package.It features 1 ports for managing a variety of tasks.
PXM6012/16P/CR Features
Buccaneer® 6000 series
PXM6012/16P/CR Applications
There are a lot of Bulgin
PXM6012/16P/CR Circular Connectors applications.
- Audio/Video devices
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
