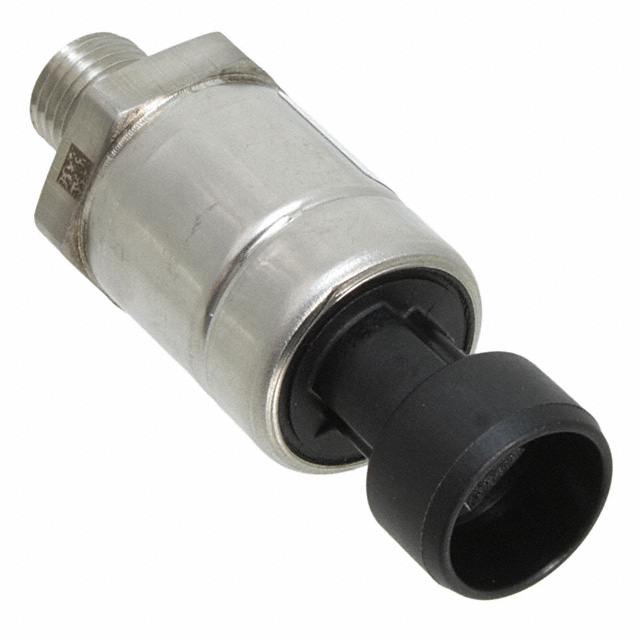

PX2AS2XX100PAAAX
Or copy the link below:
- Mfr.Part #
- PX2AS2XX100PAAAX
- Manufacturer
- Honeywell Sensing and Productivity Solutions
- Package / Case
- Cylinder
- Datasheet
- Download
- Description
- SENSOR PRESS 100PSIA 7/16-20 5V
- Stock
- 23,749
- In Stock ：
- 23,749
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Honeywell Sensing and Productivity Solutions
- Product Category :
- Pressure Sensors, Transducers - Industrial
- RoHS Status :
- RoHS Compliant
- Mount :
- Stud
- Series :
- PX2
- Maximum Pressure :
- 450PSI (3102.64kPa)
- Applications :
- Industrial Automation
- Output Type :
- Analog Voltage
- Port Size :
- Male - 7/16 11.11mm UNF
- Sensors/Transducers Type :
- PRESSURE SENSOR,PEIZORESISTIVE
- Output :
- 0.5 V ~ 4.5 V
- Feature :
- Temperature Compensated
- Operating Temperature :
- -40°C~125°C
- Operating Pressure :
- 100PSI (689.48kPa)
- Voltage - Rated DC :
- 5V
- REACH SVHC :
- No SVHC
- Accuracy :
- ±0.25%
- Output Voltage :
- 30V
- Radiation Hardening :
- No
- Published :
- 2012
- Package / Case :
- Cylinder
- Operating Supply Voltage :
- 5.25V
- Port Style :
- Threaded
- Termination Style :
- Connector
- Operating Supply Current :
- 5mA
- Nominal Supply Current :
- 5mA
- Number of Pins :
- 3
- Factory Lead Time :
- 10 Weeks
- Voltage - Supply :
- 4.75V~5.25V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pressure Type :
- Absolute
- Datasheets
- PX2AS2XX100PAAAX
PX2 Series Absolute Pressure Sensor Analog Voltage -40°C~125°C 100PSI (689.48kPa) Threaded ±0.25% 0.5 V ~ 4.5 V 4.75V~5.25V Temperature Compensated
PX2AS2XX100PAAAX Overview
For convenience, this transducer is included in the Cylinder package. The temperature of the transducers should be set to -40°C~125°C to ensure reliable performance. The transducers can operate well with a supply voltage of 4.75V~5.25V. For the transducers to work properly, 3 pins must be connected in order to make it work. The transducers can have a normal operation with nominal supply current of 5mA. The voltage released by the transducers should be 30V to make it work. DC voltage should be 5V so that the transducers can continuously operate at the rated ambient temperature.
PX2AS2XX100PAAAX Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: Cylinder
Operating Temperature: -40°C~125°C
3 Pins
PX2 series
Operating Pressure: 100PSI (689.48kPa)
Operating Supply Voltage: 5.25V
PX2AS2XX100PAAAX Applications
There are a lot of Honeywell Sensing and Productivity Solutions
PX2AS2XX100PAAAX Transducers applications.
- General Purpose
- Process Control
- Altitude Control of Drones and Flying Toys
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
