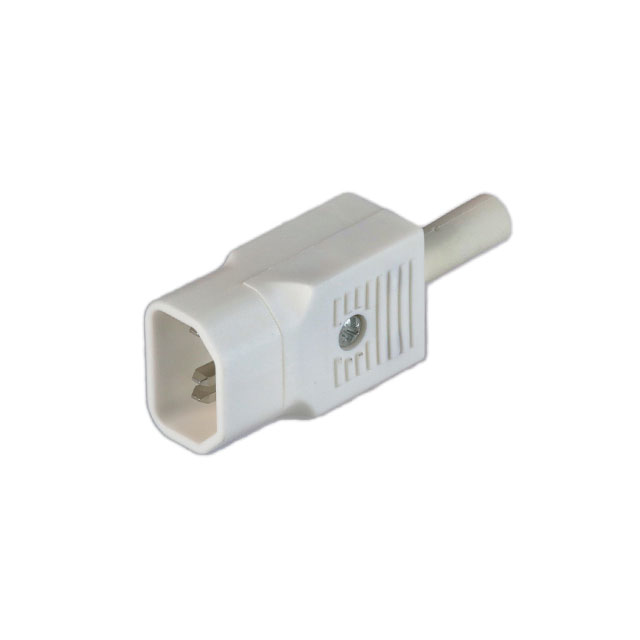

PX0686/WH
Or copy the link below:
- Mfr.Part #
- PX0686/WH
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- CONN AC PLUG STR MALE WHITE
- Stock
- 338
- In Stock ：
- 338
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- Power Entry Modules (PEM)
- Contact Plating :
- Nickel
- Gender :
- Male
- Width :
- 19.05mm
- Termination :
- Screw
- Filter Type :
- Unfiltered - Commercial
- Contact Resistance :
- 10MOhm
- Height :
- 69.85mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Coupling Type :
- Snap
- Number of Positions :
- 3
- RoHS Status :
- ROHS3 Compliant
- Number of Ports :
- 1
- Series :
- PX
- Total Number of Contacts :
- 3
- Housing Material :
- Nylon
- Connector Type :
- Plug, Male Blades
- IEC Conformance :
- yes
- Accomodates a Fuse :
- No
- Voltage - Rated AC :
- 250V
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Weight :
- 30.844281g
- Mount :
- CABLE
- Length :
- 29mm
- Packaging :
- Bulk
- Color :
- White
- Contact Material :
- Brass
- Factory Lead Time :
- 24 Weeks
- Current Rating :
- 10A
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 70°C
- Insulation Resistance :
- 10MOhm
- Min Operating Temperature :
- -40°C
- Max Voltage Rating (AC) :
- 250V
- Voltage - IEC :
- 250VAC
- Shell Material :
- Polyamide
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Approval Agency :
- CSA, ENEC, RCM, UR, VDE
- Connector Style :
- IEC 320-2-2/E
- Mounting Type :
- Free Hanging (In-Line)
- REACH SVHC :
- No SVHC
- Published :
- 2005
- Depth :
- 78.6mm
- Voltage - Rated DC :
- 250V
- Orientation :
- Straight
- Max Current Rating :
- 10A
- Datasheets
- PX0686/WH
