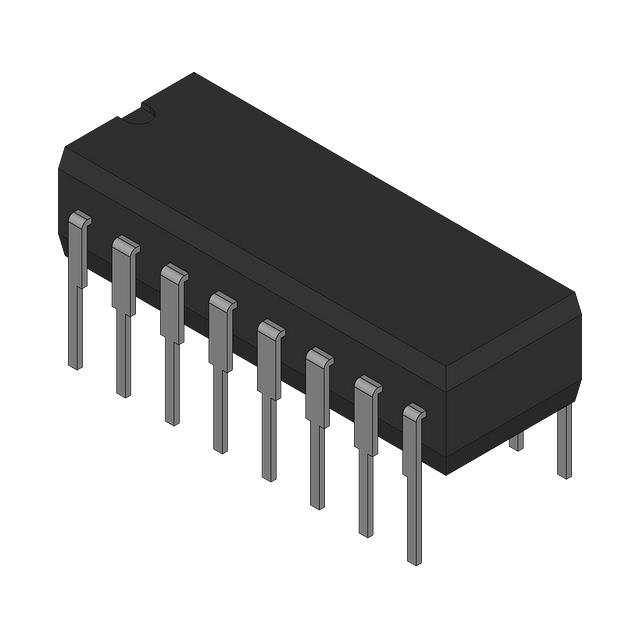

PVR1300NPBF

Manufacturer :

Infineon Technologies

Product Category :

Solid State Relays

Mounting Type :

Through Hole

Voltage - Input :

1.2VDC

Termination Style :

PC Pin

Package / Case :

16-DIP (0.300, 7.62mm), 10 Leads

Rise Time :

150μs

Max Input Current :

25mA

Published :

2000

Circuit :

DPST-NO (2 From A) x 2

Number of Pins :

16

Series :

PVR, HEXFET®

Number of Channels :

1

Isolation Voltage :

1.5kV

Control Current :

0.002A

Number of Elements :

2

Voltage - Load :

0V~100V

Output Voltage :

100V

Relay Type :

Relay

Mount :

PCB, Through Hole

Input Type :

DC

Input Current :

25mA

Overall Height :

4.9mm

Output Current :

360mA

On-State Resistance (Max) :

5Ohm

Fall Time (Typ) :

125 μs

Termination :

PC Pin

Factory Lead Time :

18 Weeks

Resistance :

5Ohm

Max Output Voltage :

100V

Throw Configuration :

DP, DPST, SPST

On-State Current-Max :

0.36A

Optoelectronic Device Type :

TRANSISTOR OUTPUT SSR

Min Operating Temperature :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Max Operating Temperature :

85°C

Radiation Hardening :

No

Output Type :

AC, DC

Packaging :

Tube

RoHS Status :

ROHS3 Compliant

Forward Current-Max :

0.025A
