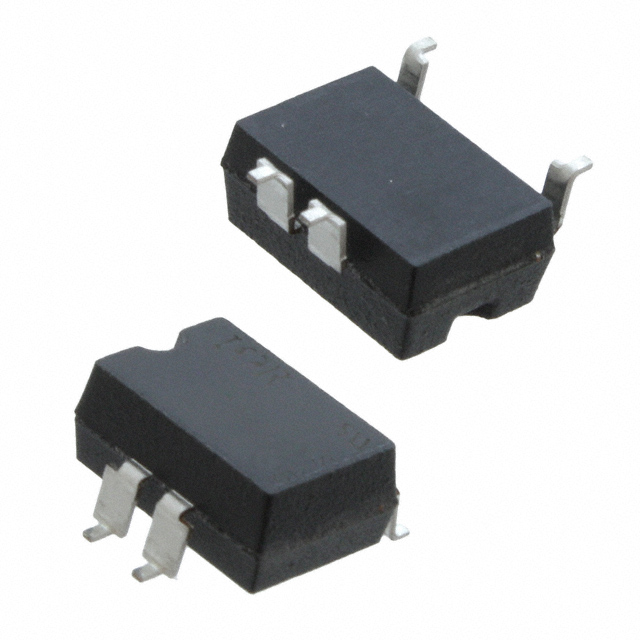

PVD1352NSPBF

Manufacturer :

Infineon Technologies

Product Category :

Solid State Relays

Capacitance :

20pF

Length :

9.39mm

Output Voltage :

100V

Max Output Voltage :

100V

Published :

2009

Relay Type :

Relay

Max Input Current :

25mA

On-State Current-Max :

0.55A

Height :

4.94mm

RoHS Status :

ROHS3 Compliant

Rise Time :

150μs

Series :

PVD, HEXFET®

Input Current :

25mA

Forward Current :

25mA

Min Operating Temperature :

-40°C

Max Operating Temperature :

85°C

Throw Configuration :

SPST

Output Current :

550mA

Number of Elements :

1

Input Type :

DC

Width :

6.47mm

Mount :

PCB, Surface Mount

Termination :

Gull wing

Control Current :

0.005A

Number of Channels :

1

Approval Agency :

UL

Resistance :

1.5Ohm

Voltage - Load :

0V~100V

Number of Pins :

4

Termination Style :

Gull wing

On-State Resistance (Max) :

1.5Ohm

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Output Type :

DC

Optoelectronic Device Type :

TRANSISTOR OUTPUT SSR

Ambient Temperature Range High :

85°C

Radiation Hardening :

No

Package / Case :

8-SMD (0.300, 7.62mm), 4 Leads

Circuit :

SPST-NO (1 Form A)

Lead Free :

Lead Free

Factory Lead Time :

16 Weeks

Packaging :

Tube

Fall Time (Typ) :

125 μs

Voltage - Input :

1.2VDC

Mounting Type :

Surface Mount

Isolation Voltage :

4kV

On-State Resistance :

1.5Ohm

Current Rating :

550mA
