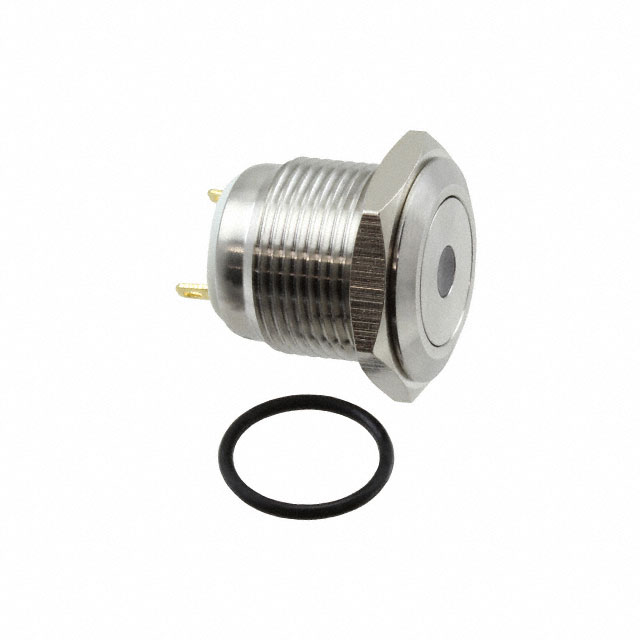

PV6F2PXSS-211

Manufacturer :

E-Switch

Product Category :

Contact Resistance :

0.05mOhm

Ratings :

Vf (Typ), If (Max)

Actuator Length :

0.059 inch

Insulation Material :

Polyamide

Illumination :

LED

Published :

2014

End Contact Material :

Silver Alloy

Factory Lead Time :

9 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Center Contact Material :

Silver Alloy

Bushing Diameter :

0.629 inch

Mount :

Panel

Series :

PV6

Electrical Life :

50000 Cycle(s)

Switch Action :

Momentary

Terminal Material :

Brass

Operating Temperature (Max) :

55°C

Insulation Resistance :

1000000000Ohm

Ingress Protection :

IP65

Actuator Travel :

1.4986 mm

End Contact Plating :

Silver

Operating Temperature (Min) :

-20°C

Center Contact Plating :

Silver

Lens Style :

Round with Flat Top

Voltage :

1.8V

Lamp Color :

Red

Panel Cutout Dimensions :

0.63 (16.00mm)

Contact Function :

OFF-(ON)

Contact (DC) Max Rating R Load :

2A@48VDC

Length - Termination :

0.137 inch

Switch Function :

SPST

ECCN Code :

EAR99

Termination Style :

Solder Lug

Panel Cutout Shape :

Round

Actuator Finish :

Stainless Steel

Dielectric Withstanding Voltage :

2000VAC V

RoHS Status :

ROHS3 Compliant

Type :

LED

Current :

20mA

Lens Size :

4.00mm Dia
