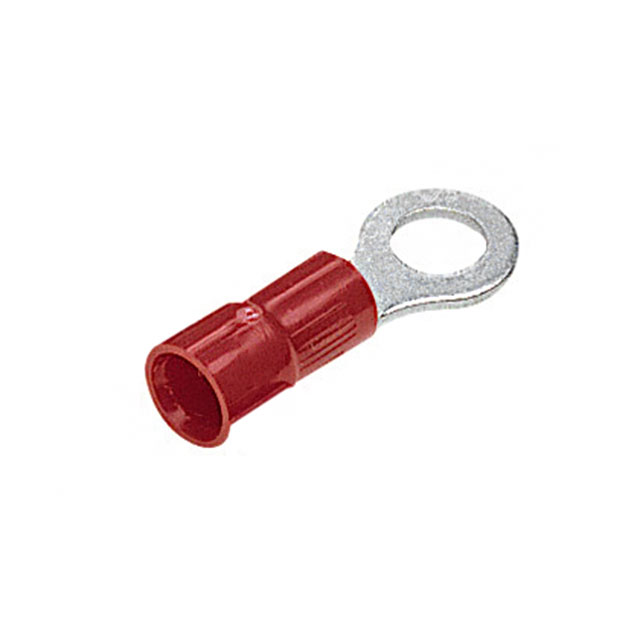

PV18-4RNB-3K
Or copy the link below:
- Mfr.Part #
- PV18-4RNB-3K
- Manufacturer
- Panduit Corporation
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 18-22AWG #4 CRIMP
- Stock
- 6,950
- In Stock ：
- 6,950
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panduit Corporation
- Product Category :
- Ring Connectors
- Terminal and Terminal Block Type :
- RING TERMINAL
- ECCN Code :
- EAR99
- Published :
- 2011
- Width - Outer Edges :
- 0.210 5.33mm
- Series :
- Pan-Term®
- Wire Gauge :
- 18-22 AWG
- Wire Gauge (Max) :
- 22 AWG
- Color :
- Red
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 18 AWG
- Insulation Diameter :
- 0.150 (3.81mm)
- Stud/Tab Size :
- 4 Stud
- Length - Overall :
- 0.740 18.80mm
- Termination :
- Crimp
- Thickness :
- 0.031 0.79mm
- Radiation Hardening :
- No
- Factory Lead Time :
- 4 Weeks
- Contact Material :
- Copper
- RoHS Status :
- ROHS3 Compliant
- Material - Insulation :
- Vinyl
- Mount :
- Free Hanging
- HTS Code :
- 8536.90.40.00
- Mounting Type :
- Free Hanging (In-Line)
- Terminal Gender :
- FEMALE
- Depth :
- 5.3mm
- Terminal Type :
- Circular
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insulation :
- Insulated
- Packaging :
- Reel
- Wire Cross Section :
- 1.5 mm2
- Length :
- 18.796mm
- Datasheets
- PV18-4RNB-3K
B.jpg)
PV18-4RNB-3K datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available at Xinshop
