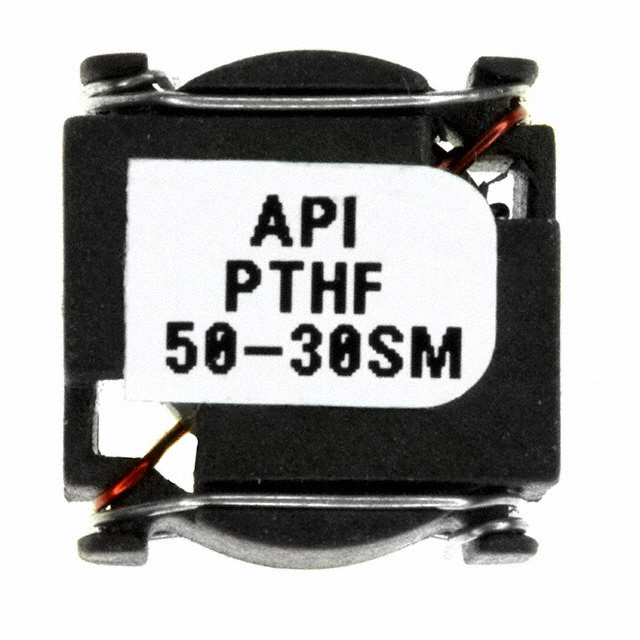

PTHF50-30SM

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductor Application :

POWER INDUCTOR

Inductance-Nom (L) :

50 μH

Terminal Shape :

ONE SURFACE

Shape/Size Description :

RECTANGULAR PACKAGE

Construction :

RECTANGULAR

Radiation Hardening :

No

Termination :

SMD/SMT

RoHS Status :

RoHS Compliant

Number of Functions :

1

Current Rating :

1.81A

Height :

10.16mm

Mount :

Surface Mount

HTS Code :

8504.50.80.00

Inductance :

50 μH

Case/Size Code :

4444

Max DC Current :

1.81A

Terminal Finish :

Tin/Lead (Sn/Pb)

Pbfree Code :

No

DC Resistance (DCR) - Parallel :

100MOhm

Packaging :

Bulk

Width :

11.176mm

Length :

11.176mm

Number of Terminations :

2

JESD-609 Code :

e0

Shielding :

Shielded

Terminal Placement :

DUAL ENDED

Tolerance :

10%

Test Frequency :

1kHz

Frequency - Self Resonant :

10MHz

Depth :

11.18mm

ECCN Code :

EAR99
